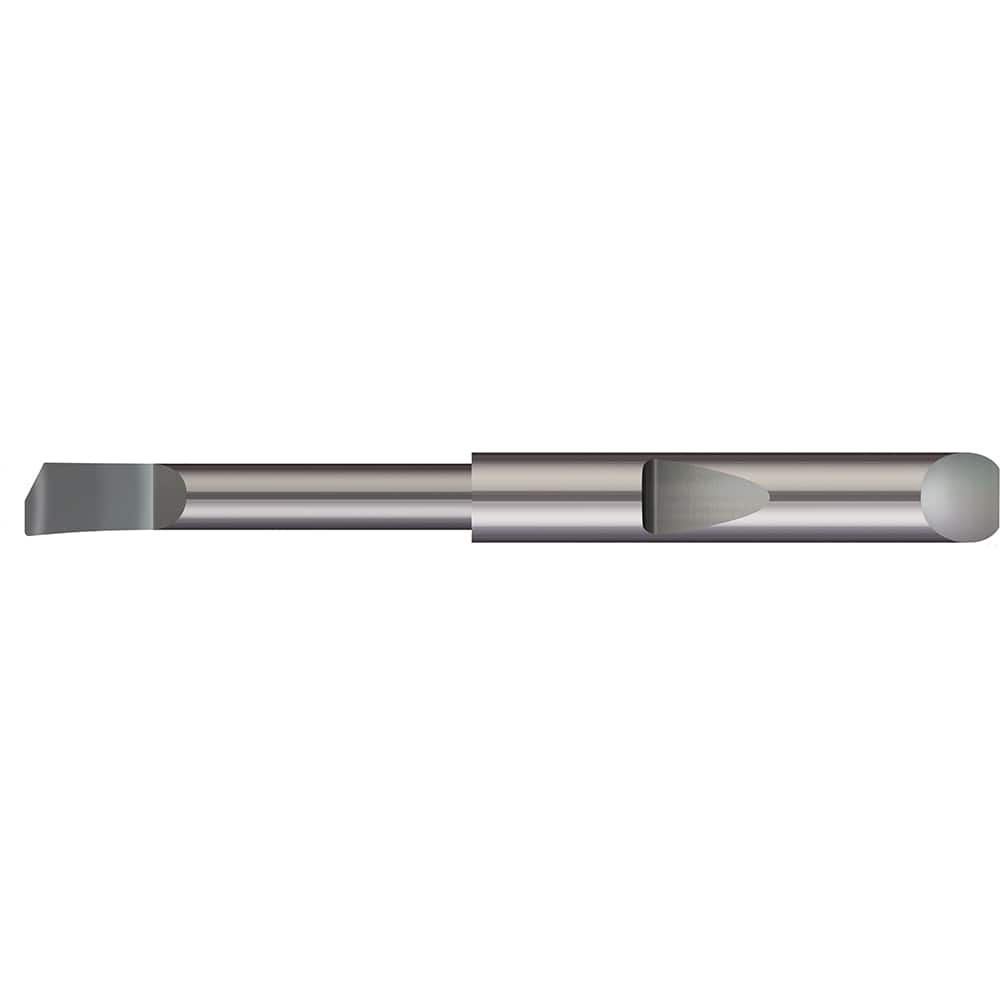

Micro 100 - Boring Bars; Minimum Bore Diameter (Decimal Inch): 0.0550 ; Minimum Bore Diameter (mm): 1.400 ; Maximum Bore Depth (Decimal Inch): 0.2500 ; Maximum Bore Depth (Inch): 1/4 ; Material: Solid Carbide ; Boring Bar Type: Boring
Item #: 15244486
Brand: Micro 100
Model #: QHBBC060250004
Product Specifications
Boring Bars; Minimum Bore Diameter (Decimal Inch): 0.0550 ; Minimum Bore Diameter (mm): 1.400 ; Maximum Bore Depth (Decimal Inch): 0.2500 ; Maximum Bore Depth (Inch): 1/4 ; Material: Solid Carbide ; Boring Bar Type: Boring
| Minimum Bore Diameter (Decimal Inch) | 0.0550 |
| Minimum Bore Diameter (mm) | 1.400 |
| Maximum Bore Depth (Decimal Inch) | 0.2500 |
| Maximum Bore Depth (Inch) | 1/4 |
| Material | Solid Carbide |
| Boring Bar Type | Boring |
| Shank Diameter (Decimal Inch) | 0.1875 |
| Shank Diameter (Inch) | 3/16 |
| Overall Length (Decimal Inch) | 1.50000 |
| Overall Length (Inch) | 1-1/2 |
| Cutting Direction | Right Hand |
| Finish/Coating | Uncoated |
