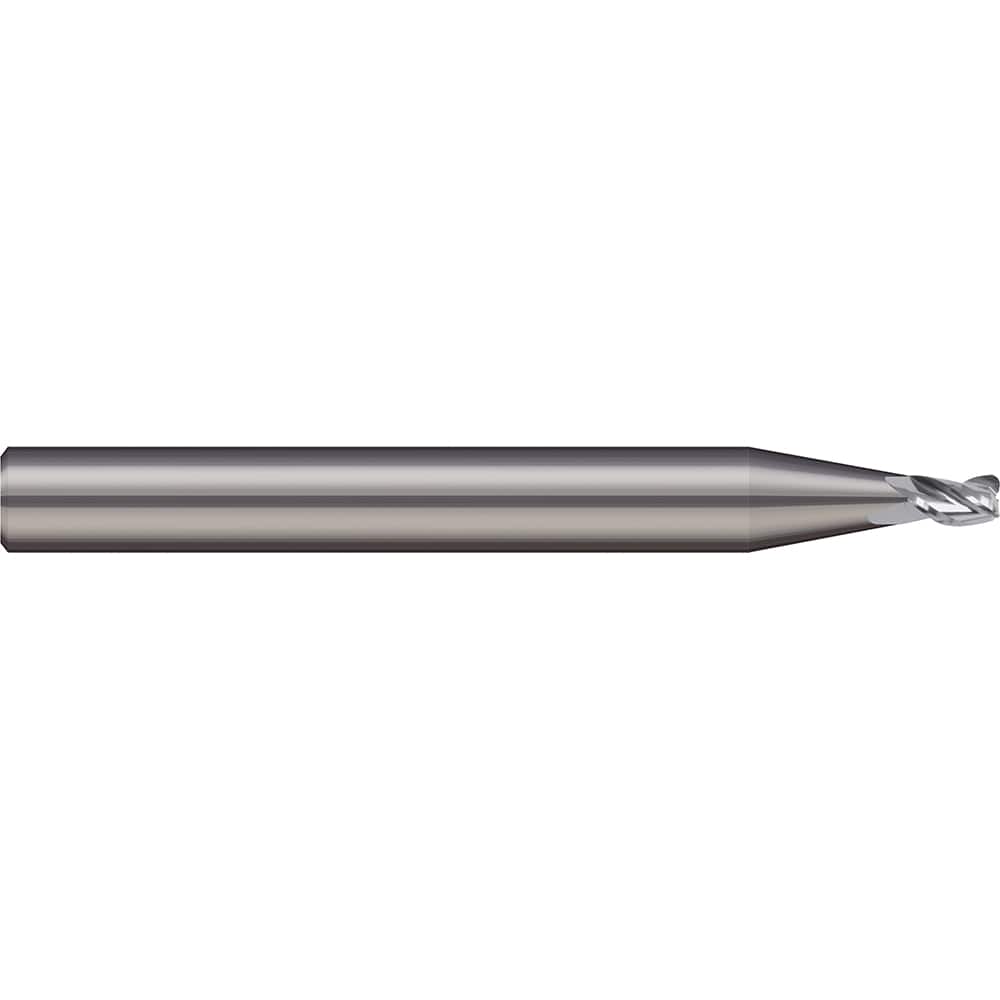

Micro 100 - Corner Radius & Corner Chamfer End Mills; Mill Diameter (mm): 0.90 ; Mill Diameter (Decimal Inch): 0.0350 ; End Type: Corner Radius ; Corner Radius (Decimal Inch): 0.0100 ; Number of Flutes: 2 ; Material: Solid Carbide
Item #: 15236292
Brand: Micro 100
Model #: MEF-035-053-010
Product Specifications
Corner Radius & Corner Chamfer End Mills; Mill Diameter (mm): 0.90 ; Mill Diameter (Decimal Inch): 0.0350 ; End Type: Corner Radius ; Corner Radius (Decimal Inch): 0.0100 ; Number of Flutes: 2 ; Material: Solid Carbide
| Mill Diameter (mm) | 0.90 |
| Mill Diameter (Decimal Inch) | 0.0350 |
| End Type | Corner Radius |
| Corner Radius (Decimal Inch) | 0.0100 |
| Number of Flutes | 2 |
| Material | Solid Carbide |
| Finish/Coating | Uncoated |
| Length of Cut (Decimal Inch) | 0.0530 |
| Shank Diameter (Inch) | 1/8 |
| Overall Length (Inch) | 1-1/2 |
| Flute Type | Upcut |
| Cutting Direction | Right Hand |
| Helix Angle | 20 |
| Variable Helix | No |
| Centercutting | Centercutting |
| Flute Direction | Right Hand |
| Series/List | End Mills for Steels & High Temperature Alloys - Corner Radius - 2 & 3 Flute - Stub Flute |
