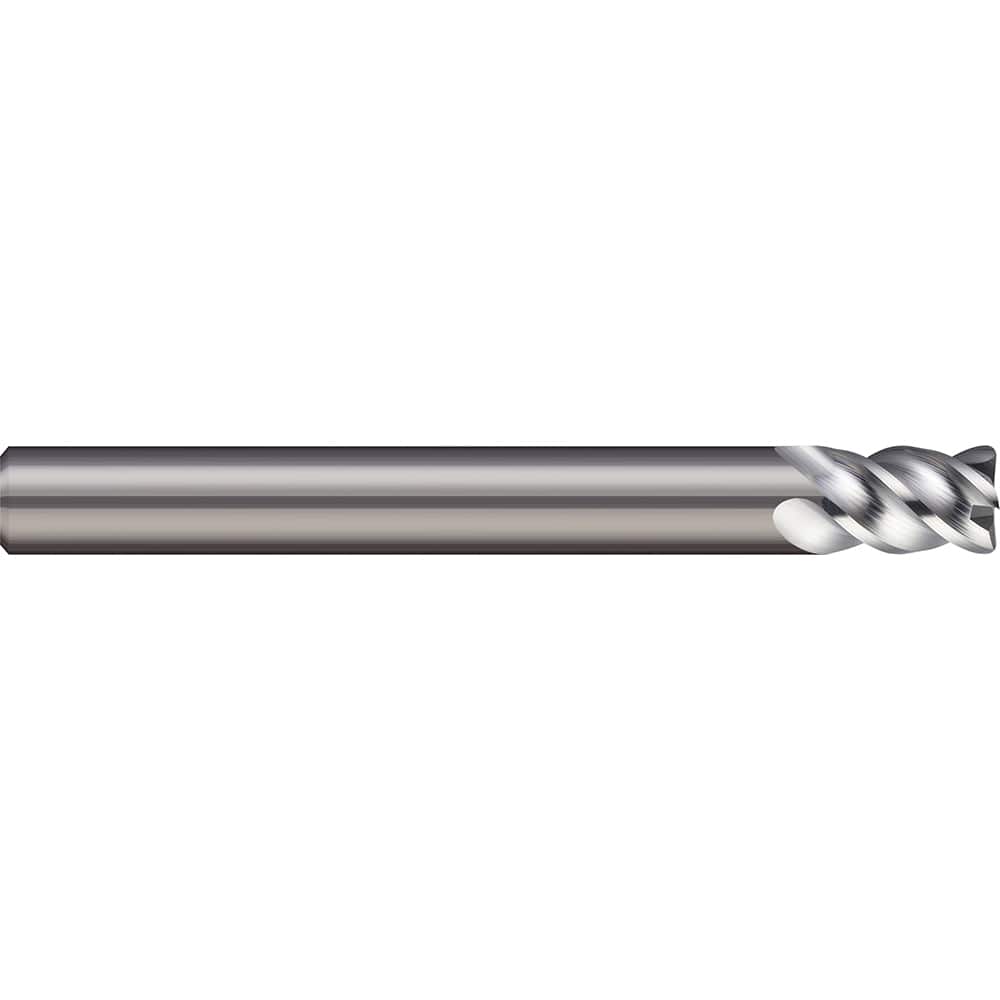

Micro 100 - Corner Radius & Corner Chamfer End Mills; Mill Diameter (mm): 10.00 ; Mill Diameter (Decimal Inch): 0.3937 ; End Type: Corner Radius ; Corner Radius (mm): 2.00 ; Number of Flutes: 4 ; Material: Solid Carbide
Item #: 15234560
Brand: Micro 100
Model #: HMCM-1020-4
Product Specifications
Corner Radius & Corner Chamfer End Mills; Mill Diameter (mm): 10.00 ; Mill Diameter (Decimal Inch): 0.3937 ; End Type: Corner Radius ; Corner Radius (mm): 2.00 ; Number of Flutes: 4 ; Material: Solid Carbide
| Mill Diameter (mm) | 10.00 |
| Mill Diameter (Decimal Inch) | 0.3937 |
| End Type | Corner Radius |
| Corner Radius (mm) | 2.00 |
| Number of Flutes | 4 |
| Material | Solid Carbide |
| Finish/Coating | Uncoated |
| Length of Cut (mm) | 22.0000 |
| Length of Cut (Decimal Inch) | 0.8661 |
| Shank Diameter (mm) | 10.0000 |
| Flute Type | Upcut |
| Cutting Direction | Right Hand |
| Helix Angle | 45 |
| Variable Helix | No |
| Centercutting | Centercutting |
| Flute Direction | Right Hand |
| Series/List | End Mills for Hardened Steels - Corner Radius - 4 Flute |
