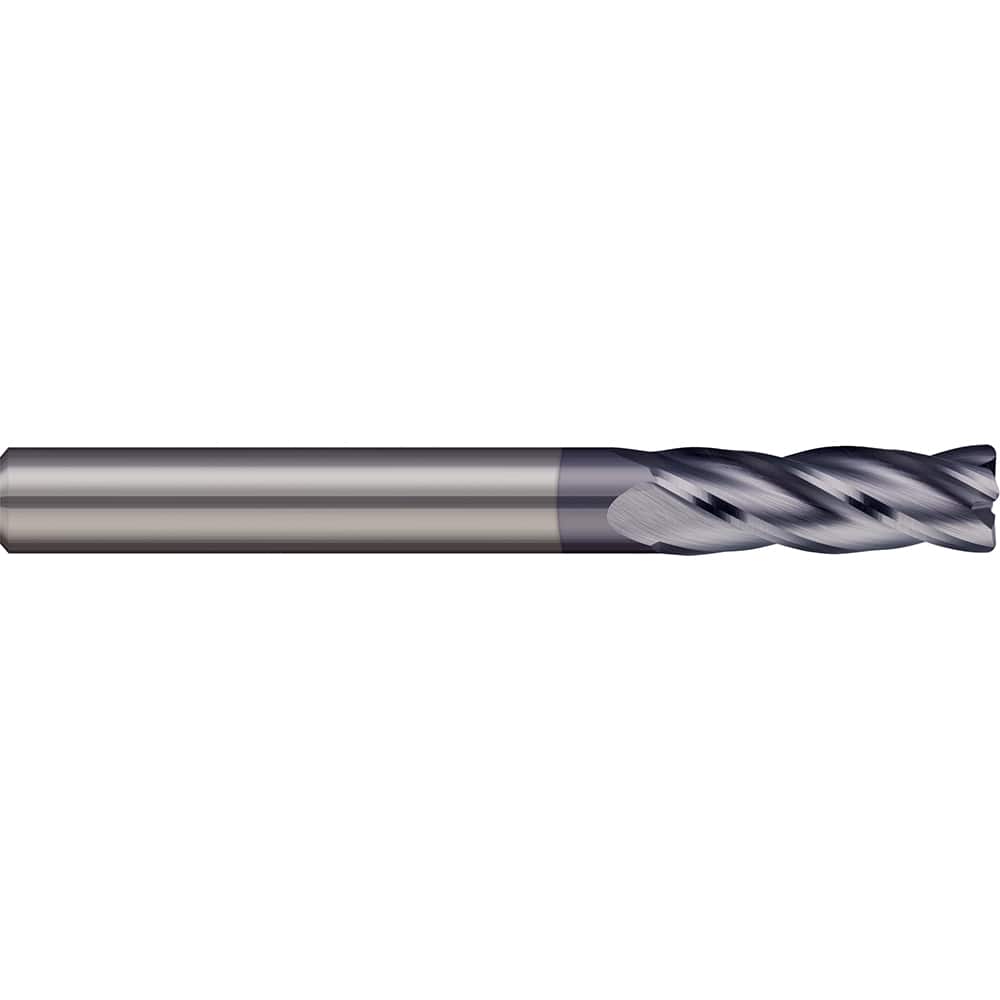

Micro 100 - Corner Radius & Corner Chamfer End Mills; Mill Diameter (mm): 2.00 ; Mill Diameter (Decimal Inch): 0.0787 ; End Type: Corner Radius ; Corner Radius (mm): 0.50 ; Number of Flutes: 4 ; Material: Solid Carbide
Item #: 15234529
Brand: Micro 100
Model #: AECM-0205-4X
Product Specifications
Corner Radius & Corner Chamfer End Mills; Mill Diameter (mm): 2.00 ; Mill Diameter (Decimal Inch): 0.0787 ; End Type: Corner Radius ; Corner Radius (mm): 0.50 ; Number of Flutes: 4 ; Material: Solid Carbide
| Mill Diameter (mm) | 2.00 |
| Mill Diameter (Decimal Inch) | 0.0787 |
| End Type | Corner Radius |
| Corner Radius (mm) | 0.50 |
| Number of Flutes | 4 |
| Material | Solid Carbide |
| Finish/Coating | AlTiN |
| Length of Cut (mm) | 5.0000 |
| Length of Cut (Decimal Inch) | 0.1969 |
| Shank Diameter (mm) | 4.0000 |
| Flute Type | Upcut |
| Cutting Direction | Right Hand |
| Helix Angle | 30 |
| Variable Helix | No |
| Centercutting | Centercutting |
| Flute Direction | Right Hand |
| Series/List | End Mills - Corner Radius - 2, 3, 4 Flute |
