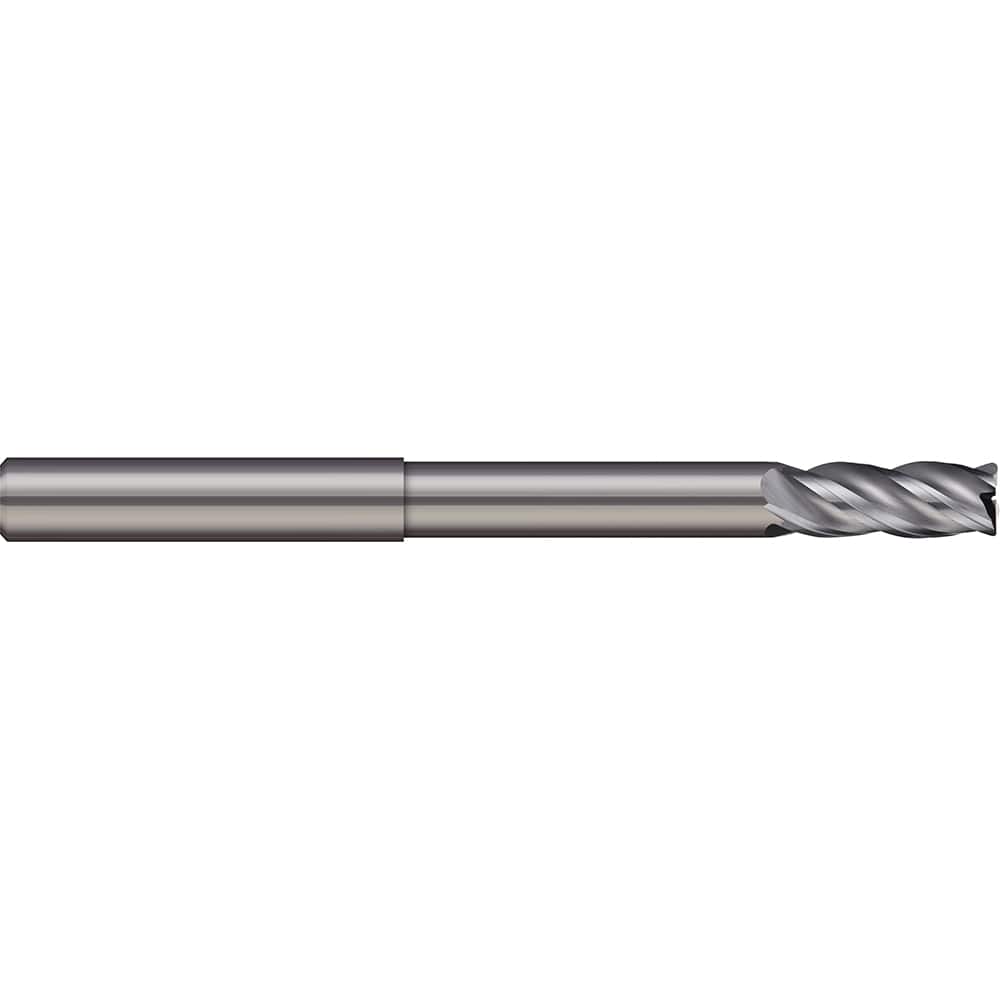

Corner Radius End Mill: 3/8″ Dia, 3/4″ LOC, 0.02″ Radius, 4 Flutes, Solid Carbide 4″ OAL, 3/8″ Shank Dia, 38 ° Helix, Bright/Uncoated, Corner Radius End
Item #: 15234115
Brand: Micro 100
Model #: VLR-375-4
Product Specifications
| Mill Diameter (Decimal Inch) | 0.3750 |
| Mill Diameter (Inch) | 3/8 |
| Length of Cut (Inch) | 3/4 |
| Corner Radius (Decimal Inch) | 0.0200 |
| Corner Radius (mm) | 0.50 |
| Number Of Flutes | 4 |
| End Mill Material | Solid Carbide |
| End Type | Corner Radius |
| Flute Type | Upcut |
| Helix Angle | 38 |
| Shank Type | Weldon Flat |
| Variable Helix | Yes |
| Shank Diameter (Inch) | 3/8 |
| Reach Length (Inch) | 2-3/4 |
| Overall Length (Inch) | 4 |
| Overall Length (Decimal Inch) | 4.0000 |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Series | End Mills for Steels & High Temperature Alloys - Corner Radius - 4 Flute - Variable Helix - Long Reach - Reduced Neck |
| Coating/Finish | Bright/Uncoated |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.7500 |
