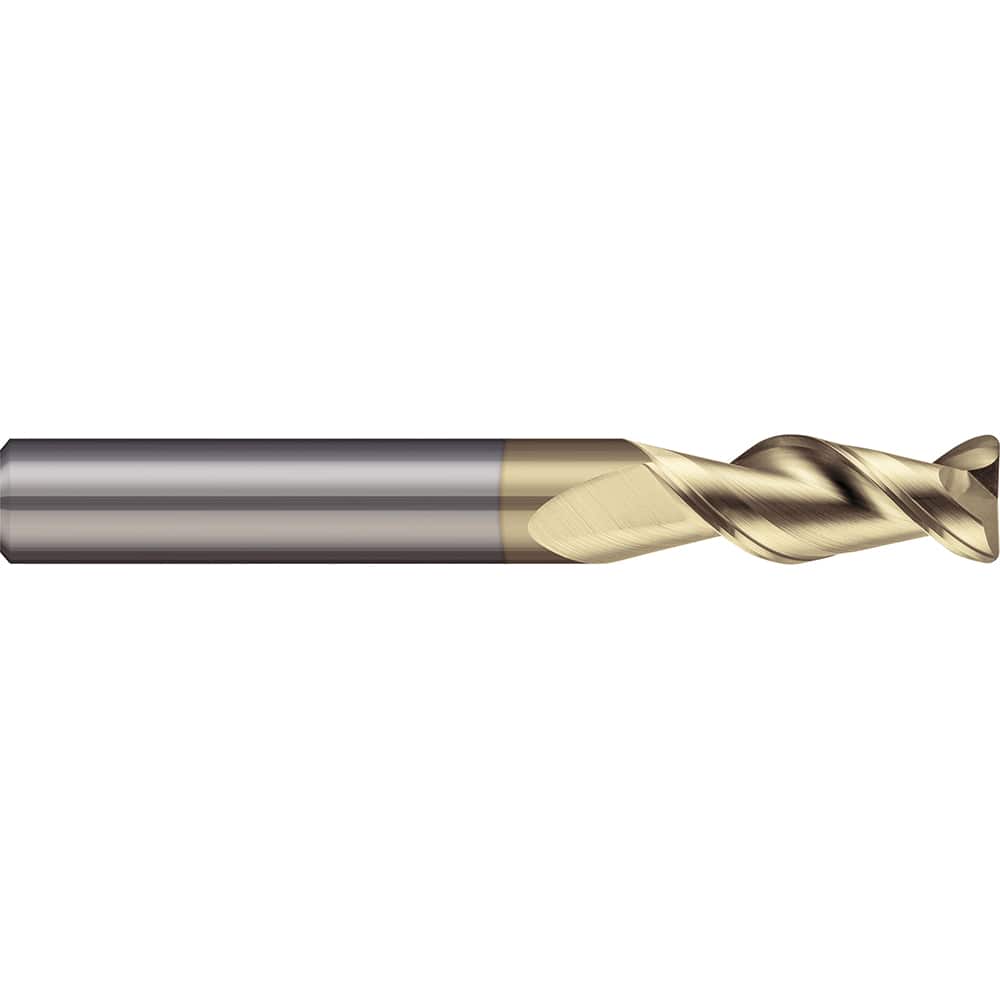

Micro 100 - Corner Radius & Corner Chamfer End Mills; Mill Diameter (Inch): 1 ; Mill Diameter (Decimal Inch): 1.0000 ; End Type: Corner Radius ; Corner Radius (Inch): 1/8 ; Corner Radius (Decimal Inch): 0.1250 ; Number of Flutes: 2
Item #: 15232796
Brand: Micro 100
Model #: ARC-001-2-125S
Product Specifications
Corner Radius & Corner Chamfer End Mills; Mill Diameter (Inch): 1 ; Mill Diameter (Decimal Inch): 1.0000 ; End Type: Corner Radius ; Corner Radius (Inch): 1/8 ; Corner Radius (Decimal Inch): 0.1250 ; Number of Flutes: 2
| Mill Diameter (Inch) | 1 |
| Mill Diameter (Decimal Inch) | 1.0000 |
| End Type | Corner Radius |
| Corner Radius (Inch) | 1/8 |
| Corner Radius (Decimal Inch) | 0.1250 |
| Number of Flutes | 2 |
| Material | Solid Carbide |
| Finish/Coating | ZrN |
| Length of Cut (Inch) | 1-1/2 |
| Length of Cut (Decimal Inch) | 1.5000 |
| Shank Diameter (Inch) | 1 |
| Overall Length (Inch) | 4 |
| Flute Type | Upcut |
| Cutting Direction | Right Hand |
| Helix Angle | 45 |
| Variable Helix | No |
| Centercutting | Centercutting |
| Flute Direction | Right Hand |
| Series/List | End Mills for Aluminum Alloys - Corner Radius - 2 & 3 Flute |
