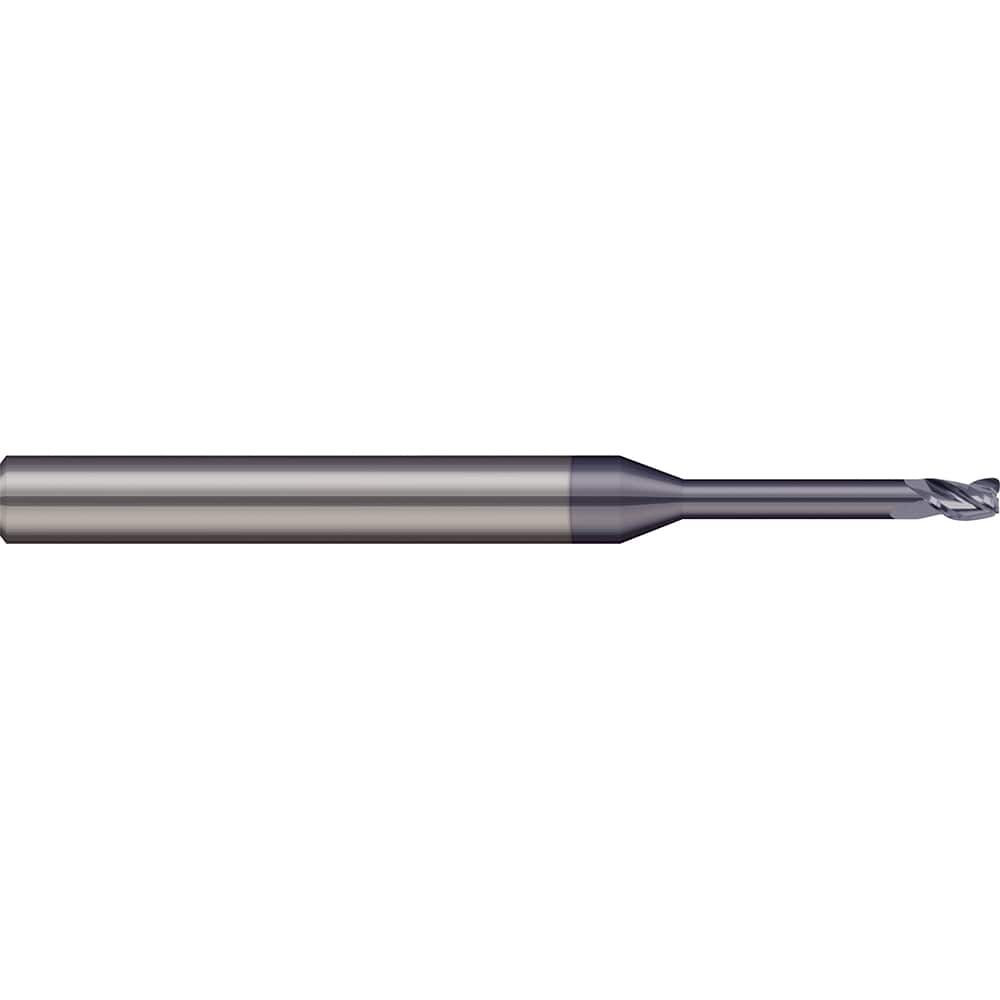

Micro 100 - Corner Radius & Corner Chamfer End Mills; Mill Diameter (mm): 1.00 ; Mill Diameter (Decimal Inch): 0.0394 ; End Type: Corner Radius ; Corner Radius (mm): 0.10 ; Number of Flutes: 2 ; Material: Solid Carbide
Item #: 15231731
Brand: Micro 100
Model #: MEFM01090010K
Product Specifications
Corner Radius & Corner Chamfer End Mills; Mill Diameter (mm): 1.00 ; Mill Diameter (Decimal Inch): 0.0394 ; End Type: Corner Radius ; Corner Radius (mm): 0.10 ; Number of Flutes: 2 ; Material: Solid Carbide
| Mill Diameter (mm) | 1.00 |
| Mill Diameter (Decimal Inch) | 0.0394 |
| End Type | Corner Radius |
| Corner Radius (mm) | 0.10 |
| Number of Flutes | 2 |
| Material | Solid Carbide |
| Finish/Coating | nACRo |
| Length of Cut (mm) | 1.5000 |
| Length of Cut (Decimal Inch) | 0.0591 |
| Shank Diameter (mm) | 3.0000 |
| Flute Type | Upcut |
| Cutting Direction | Right Hand |
| Helix Angle | 20 |
| Variable Helix | No |
| Reach Length (mm) | 9.00 |
| Centercutting | Centercutting |
| Flute Direction | Right Hand |
| Series/List | End Mills for Steels & High Temperature Alloys - Corner Radius - 2 & 3 Flute - Long Reach, Stub Flute |
