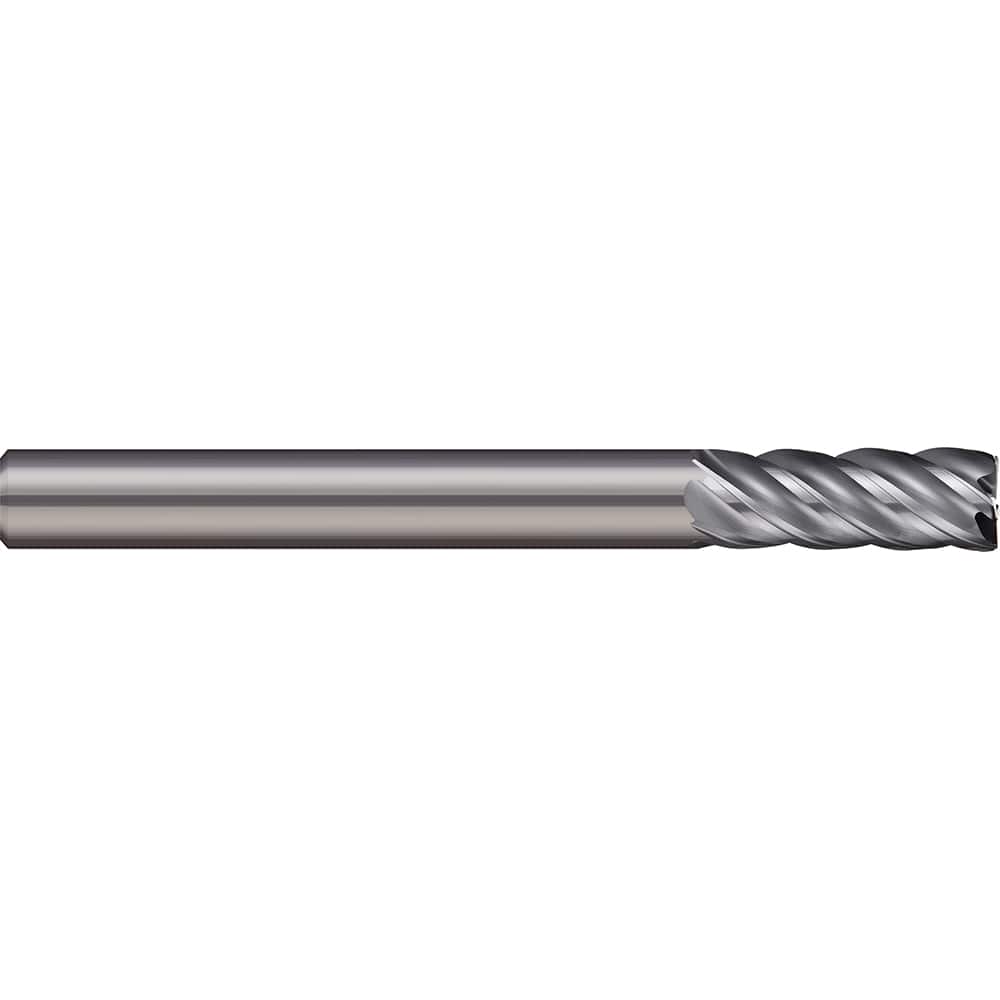

Micro 100 - Corner Radius & Corner Chamfer End Mills; Mill Diameter (Inch): 1/2 ; Mill Diameter (Decimal Inch): 0.5000 ; End Type: Corner Radius ; Corner Radius (Decimal Inch): 0.0600 ; Number of Flutes: 5 ; Material: Solid Carbide
Item #: 15230410
Brand: Micro 100
Model #: VHM-500-5-060
Product Specifications
Corner Radius & Corner Chamfer End Mills; Mill Diameter (Inch): 1/2 ; Mill Diameter (Decimal Inch): 0.5000 ; End Type: Corner Radius ; Corner Radius (Decimal Inch): 0.0600 ; Number of Flutes: 5 ; Material: Solid Carbide
| Mill Diameter (Inch) | 1/2 |
| Mill Diameter (Decimal Inch) | 0.5000 |
| End Type | Corner Radius |
| Corner Radius (Decimal Inch) | 0.0600 |
| Number of Flutes | 5 |
| Material | Solid Carbide |
| Finish/Coating | Uncoated |
| Length of Cut (Inch) | 1 |
| Length of Cut (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1/2 |
| Overall Length (Inch) | 3 |
| Flute Type | Upcut |
| Cutting Direction | Right Hand |
| Helix Angle | 38 |
| Variable Helix | Yes |
| Centercutting | Centercutting |
| Flute Direction | Right Hand |
| Shank Type | Weldon Flat |
| Series/List | End Mills for Steels & High Temperature Alloys - Corner Radius - 5 Flute - Variable Helix |
