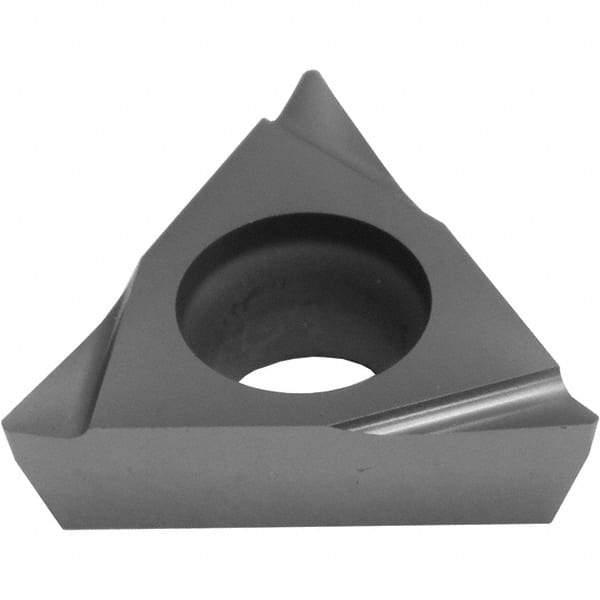

Sumitomo - TPGT220.5 LFY Grade AC5015S Carbide Turning Insert - TiAlSiN Finish, 60° Triangle, 1/4" Inscr Circle, 1/8" Thick, 0.0078" Corner Radius
Item #: 15224942
Brand: Sumitomo
Model #: 10T5214
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TPGT |
| Insert Size | 220.5 |
| Material | Carbide |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 1/8 |
| Corner Radius (Decimal Inch) | 0.0078 |
| Manufacturer's Grade | AC5015S |
| Coating | TiAlSiN |
| Material Grade | S10 |
| Chip Breaker | LFY |
| Hole Diameter (Decimal Inch) | 0.1300 |
| Rake | Positive |
| Rake Angle | 15 |
| Relief Angle | 11 |
| Proprietary Coating Designation | Absotech Bronze |
| Coating Process | PVD |
| Manufacturers Catalog Number | TPGT220.5LFY-AC5015S |
| Included Angle | 60 |
| Cutting Direction | Left Hand |
| Insert Hand | Left Hand |
| Series | AC5000S |
| Insert Holding Method | Screw-On |
| FullRadius | No |
| Shape | Triangular |
