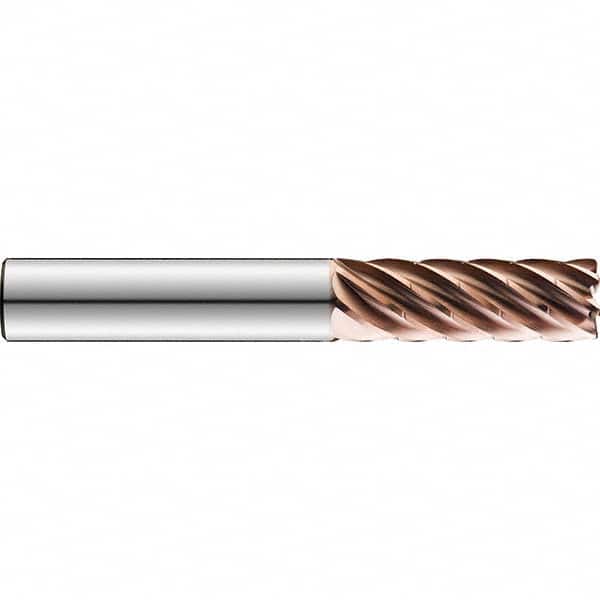

SGS - 3/8" Diam 7 Flute Solid Carbide 0.03" Corner Radius End Mill
Item #: 15170749
Brand: SGS
Model #: 77147
Product Specifications
| Mill Diameter (Inch) | 3/8 |
| End Type | Corner Radius |
| Corner Radius (Decimal Inch) | 0.03 |
| Number of Flutes | 7 |
| Material | Solid Carbide |
| Finish/Coating | Ti-NAMITE-M |
| Length of Cut (Inch) | 15/16 |
| Shank Diameter (Inch) | 3/8 |
| Overall Length (mm) | 76.20 |
| Overall Length (Inch) | 3 |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Helix Angle | 37 |
| Variable Index | Yes |
| Variable Helix | No |
| Material Grade | Micrograin |
| Single or Double End | Single |
| Minimum Helix Angle | 37 |
| Maximum Helix Angle | 37 |
| Length Type | Regular |
| Centercutting | No |
| Flute Direction | Right Hand |
| Shank Diameter Tolerance (mm) | h6 |
| Shank Diameter Tolerance (Decimal Inch) | h6 |
| Extended Reach | No |
| Overall Length Tolerance (mm) | 0.062 to -0.062 |
| Overall Length Tolerance (Decimal Inch) | 0.062 to -0.062 |
| Shank Type | Round |
| PSC Code | 3445 |
| Series/List | 77 |
| Chipbreaker | Yes |
