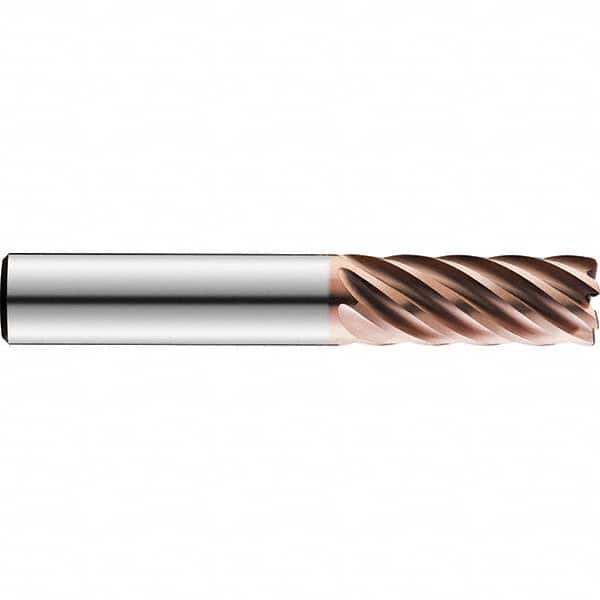

Square End Mill: 12mm Dia, 36mm LOC, 12mm Shank Dia, 83mm OAL, 7 Flutes, Solid Carbide Single End, TiN Finish, Spiral Flute, Variable Helix, RH Cut, RH Flute, Series 77
Item #: 15163041
Brand: SGS
Model #: 74445
Product Specifications
| Mill Diameter (Decimal Inch) | 0.4724 |
| Mill Diameter (mm) | 12.00 |
| Number Of Flutes | 7 |
| Length of Cut (mm) | 36.00 |
| End Mill Material | Solid Carbide |
| End Type | Single |
| Centercutting | No |
| Cutting Direction | Right Hand |
| Finish/Coating | TiN |
| Shank Diameter (mm) | 12.00 |
| Helix Angle | 37 |
| Chipbreaker | No |
| Variable Helix | Yes |
| Variable Index | No |
| Extended Reach | No |
| Overall Length (mm) | 83.00 |
| Shank Type | Straight-Cylindrical |
| Material Grade | Micrograin |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Flute Direction | Right Hand |
| Flute Type | Spiral |
| Helix Style | Medium |
| Shank Diameter Tolerance | h6 |
| Length Type | Long |
| Mill Diameter Tolerance | h6 |
| Overall Length Tolerance | +0.062/-0.062 mm; +0.062/-0.062 in |
| Series | 77 |
| PSC Code | 3445 |
