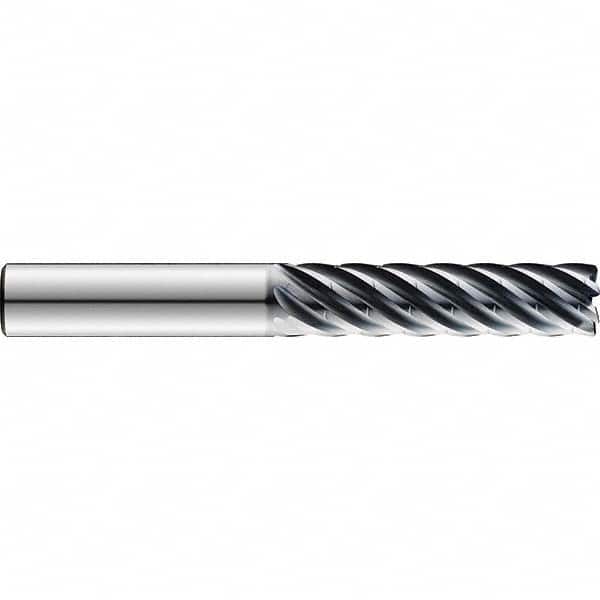

Square End Mill: 3/8'' Dia, 15/16'' LOC, 3/8'' Shank Dia, 3'' OAL, 7 Flutes, Solid Carbide Single End, TiN Finish, Spiral Flute, Variable Helix, RH Cut, RH Flute, Series 77
Item #: 15162217
Brand: SGS
Model #: 77138
Product Specifications
| Mill Diameter (Inch) | 3/8 |
| Mill Diameter (Decimal Inch) | 0.3750 |
| Number Of Flutes | 7 |
| Length of Cut (Inch) | 15/16 |
| End Mill Material | Solid Carbide |
| End Type | Single |
| Centercutting | No |
| Cutting Direction | Right Hand |
| Shank Diameter (Inch) | 3/8 |
| Finish/Coating | TiN |
| Overall Length (Inch) | 3 |
| Helix Angle | 37 |
| Chipbreaker | Yes |
| Variable Helix | Yes |
| Variable Index | No |
| Extended Reach | No |
| Shank Type | Straight-Cylindrical |
| Length of Cut (Decimal Inch) | 0.9375 |
| Material Grade | Micrograin |
| Shank Diameter (Decimal Inch) | 0.3750 |
| Overall Length (Decimal Inch) | 3.0000 |
| Flute Direction | Right Hand |
| Flute Type | Spiral |
| Helix Style | Medium |
| Shank Diameter Tolerance | h6 |
| Length Type | Regular |
| Mill Diameter Tolerance | h6 |
| Overall Length Tolerance | +0.062/-0.062 mm; +0.062/-0.062 in |
| Series | 77 |
| PSC Code | 3445 |
