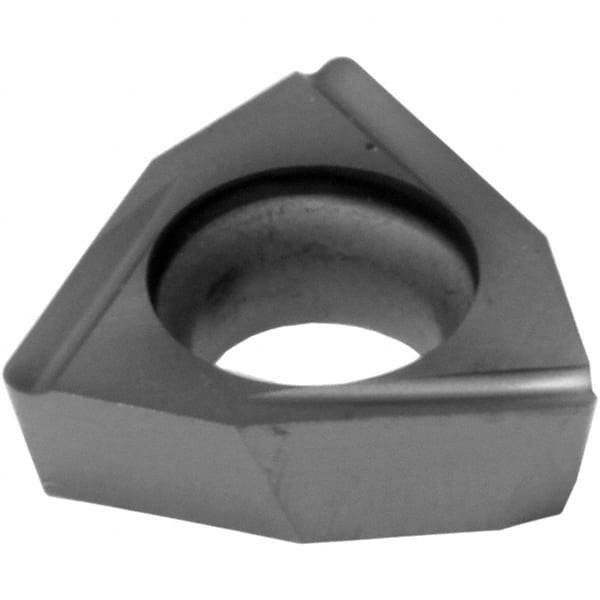

Sumitomo - WBGT521 LFX Grade AC5015S Carbide Turning Insert - TiAlSiN Finish, 80° Trigon, 0.156" Inscr Circle, 1/16" Thick, 0.0156" Corner Radius
Item #: 15116098
Brand: Sumitomo
Model #: 10T5ABX
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | WBGT |
| Insert Size | 521 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.1560 |
| Thickness (Inch) | 1/16 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | AC5015S |
| Coating | TiAlSiN |
| Material Grade | S10 |
| Chip Breaker | LFX |
| Hole Diameter (Decimal Inch) | 0.0900 |
| Rake | Positive |
| Rake Angle | 15 |
| Relief Angle | 5 |
| Proprietary Coating Designation | Absotech Bronze |
| Coating Process | PVD |
| Manufacturers Catalog Number | WBGT521LFX-AC5015S |
| Included Angle | 80 |
| Cutting Direction | Left Hand |
| Insert Hand | Left Hand |
| Series | AC5000S |
| Insert Holding Method | Screw-On |
| FullRadius | No |
| Shape | Trigon |
