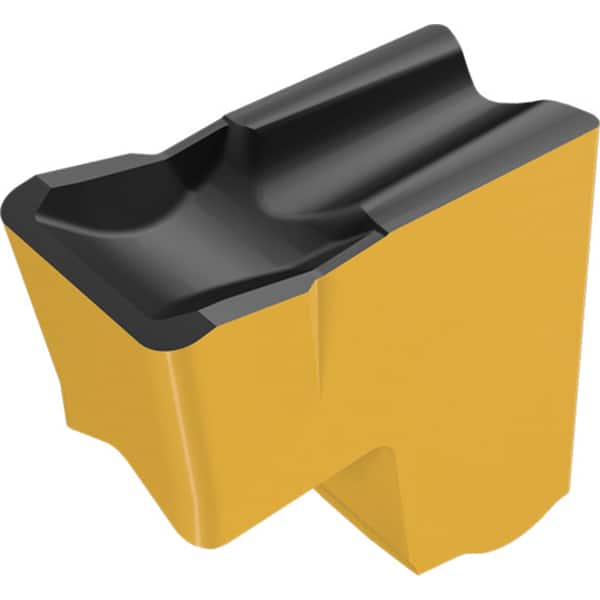

TAG N5HF IC808 Carbide Cutoff Insert TiAlN/AlTiN/TiN Finish, Neutral Lead Angle, 5mm Cutting Width, 0.5mm Corner Radius, Series Tang-Grip
Item #: 15112055
Brand: Iscar
Model #: 3347734
Product Specifications
| Insert Style | TAG |
| Insert Size Code | 5 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | IC808 |
| Cutting Width (Decimal Inch) | 0.1960 |
| Cutting Width (mm) | 5.00 |
| Insert Holding Method | Self Grip |
| Lead Angle Direction | Neutral |
| Insert Hand | Neutral |
| Relief Angle | 7.00 |
| Corner Radius (mm) | 0.50 |
| Corner Radius (Decimal Inch) | 0.0196 |
| Chipbreaker | HF |
| Multi-use Tool | Yes |
| Cutting Tool Application | Grooving; Parting |
| Series | Tang-Grip |
| Coating Process | PVD |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; H; K; M |
| Iso Code | ISO 13399 |
| Standards | ISO 13399 |
| Width Tolerance | 0.04 (mm) |
| Full Radius | No |
| Overall Width (Decimal Inch - 4 Decimals) | 0.1960 |
| Overall Width | 5.00 |
| Coating/Finish | AlTiN; TiN; TiAlN |
| Single Or Double End | Single |
