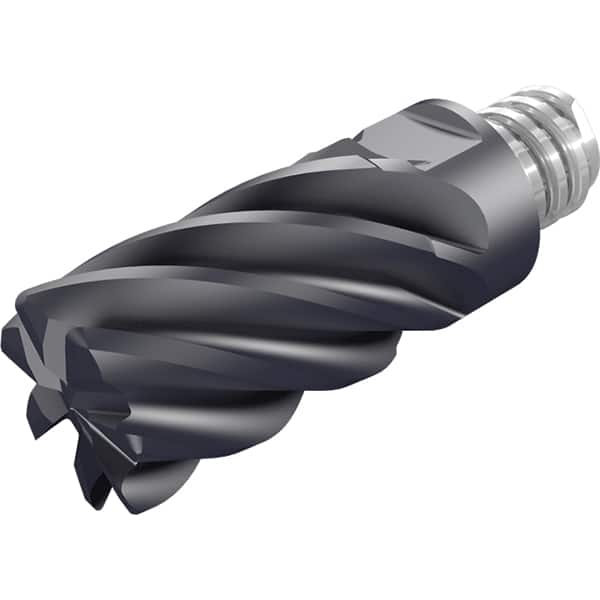

Iscar - MM EC250H37R10CF-9T15 Carbide End Mill Tip Insert
Item #: 15109812
Brand: Iscar
Model #: 3336722
Product Specifications
| Series | MM |
| Milling Tip Style | MM EC |
| Milling Tip Type | End Mill |
| Material | Carbide |
| Cutting Diameter (mm) | 25 |
| Cutting Diameter (Decimal Inch) | 0.9840 |
| Manufacturer's Grade | IC908 |
| Depth of Cut (mm) | 37.00 |
| Depth of Cut (Decimal Inch) | 1.4560 |
| Number of Flutes | 9 |
| Coating | TiAIN |
| Corner Radius (Inch) | 0.039 |
| Coating Process | PVD |
| Overall Length (Decimal Inch) | 2.06600 |
| Mill Diameter (mm) | 25.00 |
| Finish/Coating | TiAIN |
| Corner Radius (mm) | 1 |
| Single or Double End | Single |
