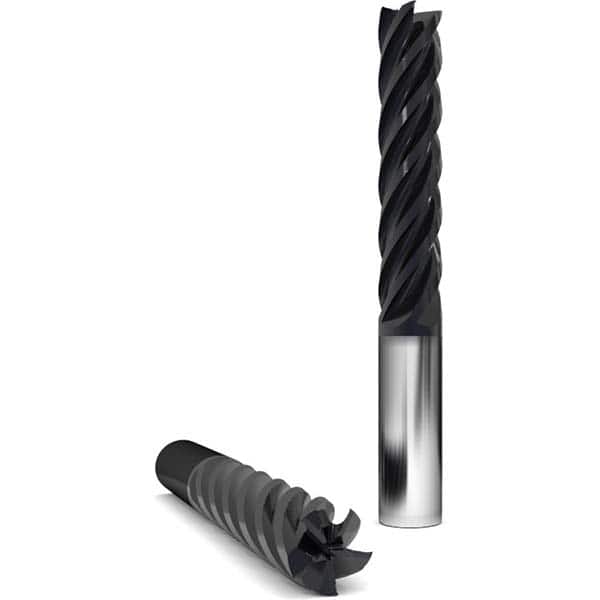

Corner Radius End Mill: 5/8″ Dia, 2-1/8″ LOC, 0.12″ Radius, 5 Flutes, Solid Carbide 4″ OAL, 5/8″ Shank Dia, 38 ° Helix, AlCr Coated, Corner Radius End, Centercutting, Series 2205
Item #: 15096514
Brand: GWS
Model #: 311750
Product Specifications
| Mill Diameter (Decimal Inch) | 0.6250 |
| Mill Diameter (Inch) | 5/8 |
| Mill Diameter (mm) | 15.88 |
| Length of Cut (Inch) | 2-1/8 |
| Corner Radius (Decimal Inch) | 0.1200 |
| Length of Cut (mm) | 53.97 |
| Number Of Flutes | 5 |
| End Mill Material | Solid Carbide |
| Extended Reach | No |
| End Type | Corner Radius |
| Length Type | Standard |
| Flute Type | Straight |
| Helix Angle | 38 |
| Shank Type | Standard |
| Centercutting | Yes |
| Shank Diameter (Inch) | 0.625 |
| Overall Length (Inch) | 4 |
| Overall Length (Decimal Inch) | 4.0000 |
| Maximum Helix Angle | 38.00 |
| Shank Diameter Tolerance | h6 |
| Primary Workpiece Material | Stainless Steel; Steel |
| Primary Workpiece Material Code | P; M |
| Secondary Workpiece Material | Cast Iron |
| Secondary Workpiece Material Code | S; K |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Material Grade | Micrograin |
| Series | 2205 |
| Coating Classification | Uncoated |
| Single Or Double End | Single |
| Coating/Finish | AlCr |
| Length Of Cut (Decimal Inch - 4 Decimals) | 2.1250 |
