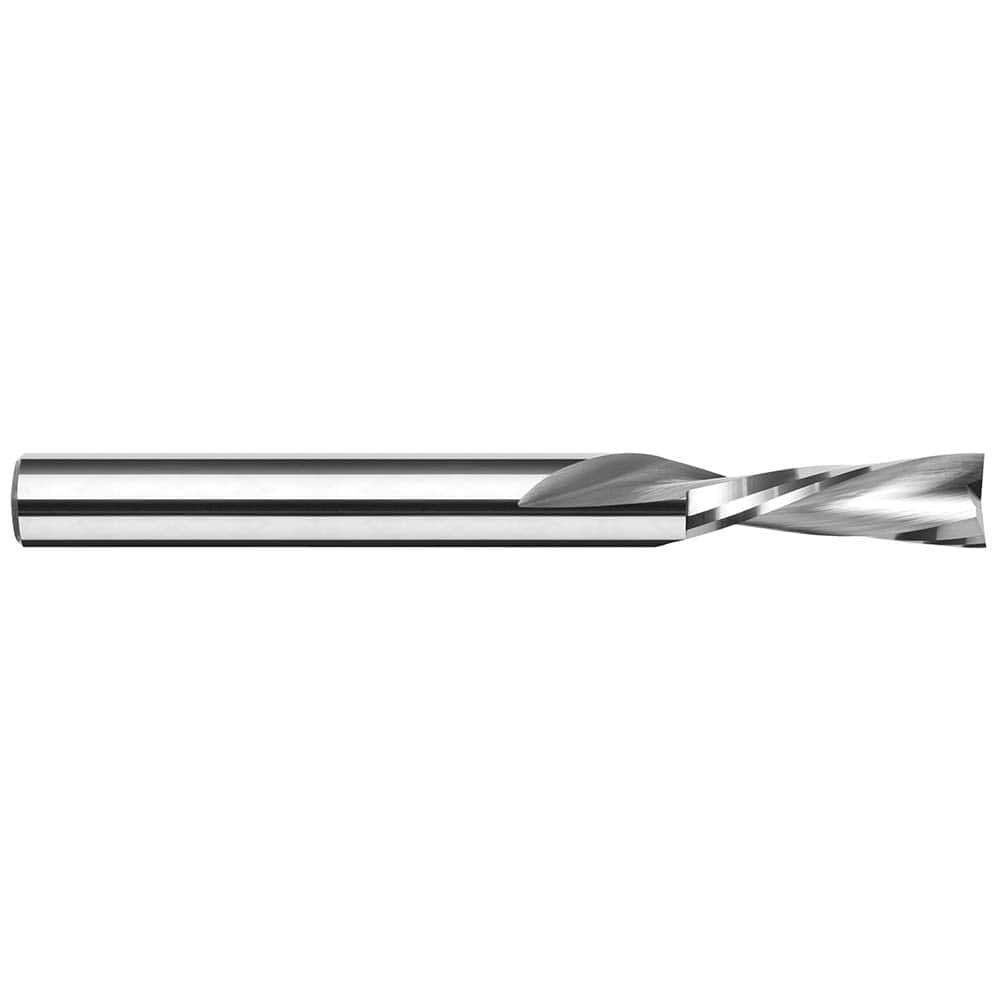

Square End Mill: 1/8'' Dia, 1/2'' LOC, 1/8'' Shank Dia, 2'' OAL, 2 Flutes, Solid Carbide Single End, Uncoated, Downcut Flute, 20 ° Helix, RH Cut, RH Flute
Item #: 15015779
Brand: Harvey Tool
Model #: 827508
Product Specifications
| Mill Diameter (Inch) | 1/8 |
| Mill Diameter (Decimal Inch) | 0.1250 |
| Number Of Flutes | 2 |
| Length of Cut (Inch) | 1/2 |
| End Mill Material | Solid Carbide |
| End Type | Single |
| Centercutting | No |
| Cutting Direction | Right Hand |
| Shank Diameter (Inch) | 1/8 |
| Finish/Coating | Bright/Uncoated |
| Overall Length (Inch) | 2 |
| Helix Angle | 20 |
| Variable Helix | No |
| Extended Reach | No |
| Length Of Cut Range (Decimal Inch) | 0.5000 - 0.6000 |
| Length of Cut (Decimal Inch) | 0.5000 |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Overall Length (Decimal Inch) | 2.0000 |
| Flute Direction | Right Hand |
| Flute Type | Downcut |
| Helix Style | Low; Medium |
