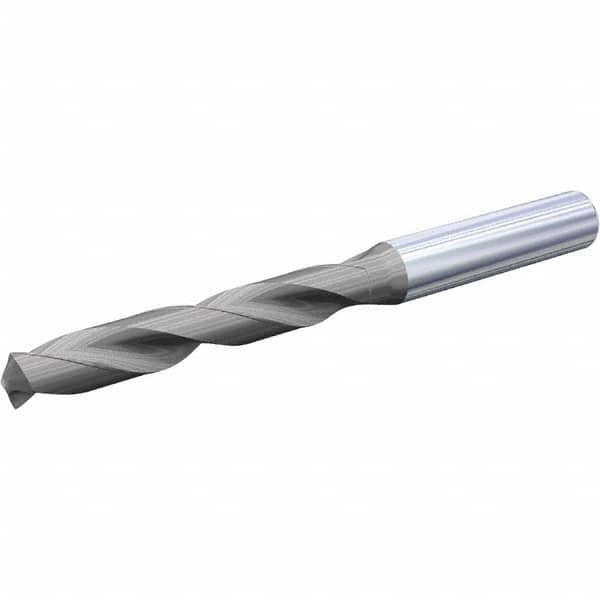

Jobber Length Drill Bit: 0.625″ Dia, 140 °, Solid Carbide TiN, AlTiN Finish, Right Hand Cut, Helical Flute, Straight-Cylindrical Shank
Item #: 14964589
Brand: Kennametal
Model #: 6782497
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.6250 |
| Drill Bit Size (Inch) | 5/8 |
| Drill Bit Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Drill Bit Finish/Coating | TiN/AlTiN |
| Drill Point Angle (Degrees) | 140 |
| Flute Type | Helical |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Overall Length (mm) | 115.00 |
| Flute Length (mm) | 64.00 |
| Flute By Diameter Ratio | 2.5xD |
| Shank Diameter (Inch) | 5/8 |
| Shank Diameter (mm) | 15.87 |
| Maximum Drilling Depth (mm) | 46.50 |
| Shank Length (mm) | 48.50 |
| Drill Point Length (mm) | 3.29 |
| Drill Bit Grade | KCP15B |
| Drill Bit Size Range (Decimal Inch) | 0.5000 - 0.6500 |
