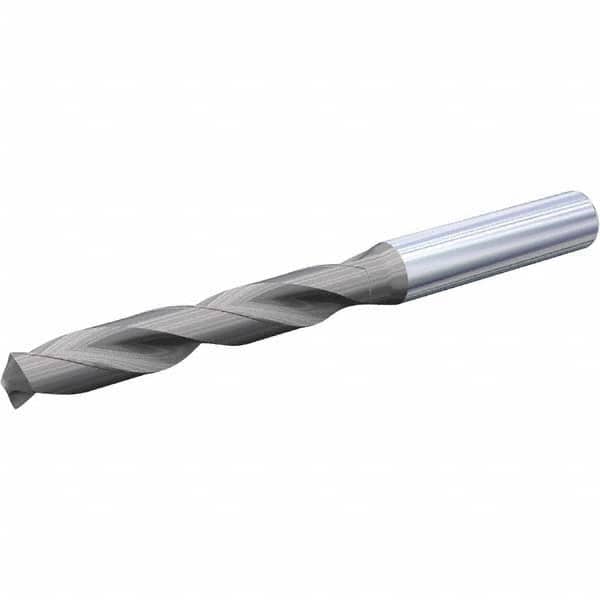

Jobber Length Drill Bit: 0.4844″ Dia, 140 °, Solid Carbide TiN, AlTiN Finish, Right Hand Cut, Helical Flute, Straight-Cylindrical Shank
Item #: 14964282
Brand: Kennametal
Model #: 6782556
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.4844 |
| Drill Bit Size (Inch) | 31/64 |
| Drill Bit Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Drill Bit Finish/Coating | TiN/AlTiN |
| Drill Point Angle (Degrees) | 140 |
| Flute Type | Helical |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Overall Length (mm) | 118.00 |
| Flute Length (mm) | 70.00 |
| Flute By Diameter Ratio | 4xD |
| Shank Diameter (Inch) | 1/2 |
| Shank Diameter (mm) | 12.70 |
| Maximum Drilling Depth (mm) | 55.60 |
| Shank Length (mm) | 45.50 |
| Drill Point Length (mm) | 2.58 |
| Drill Bit Grade | KCP15B |
| Drill Bit Size Range (Decimal Inch) | 0.4000 - 0.5000 |
