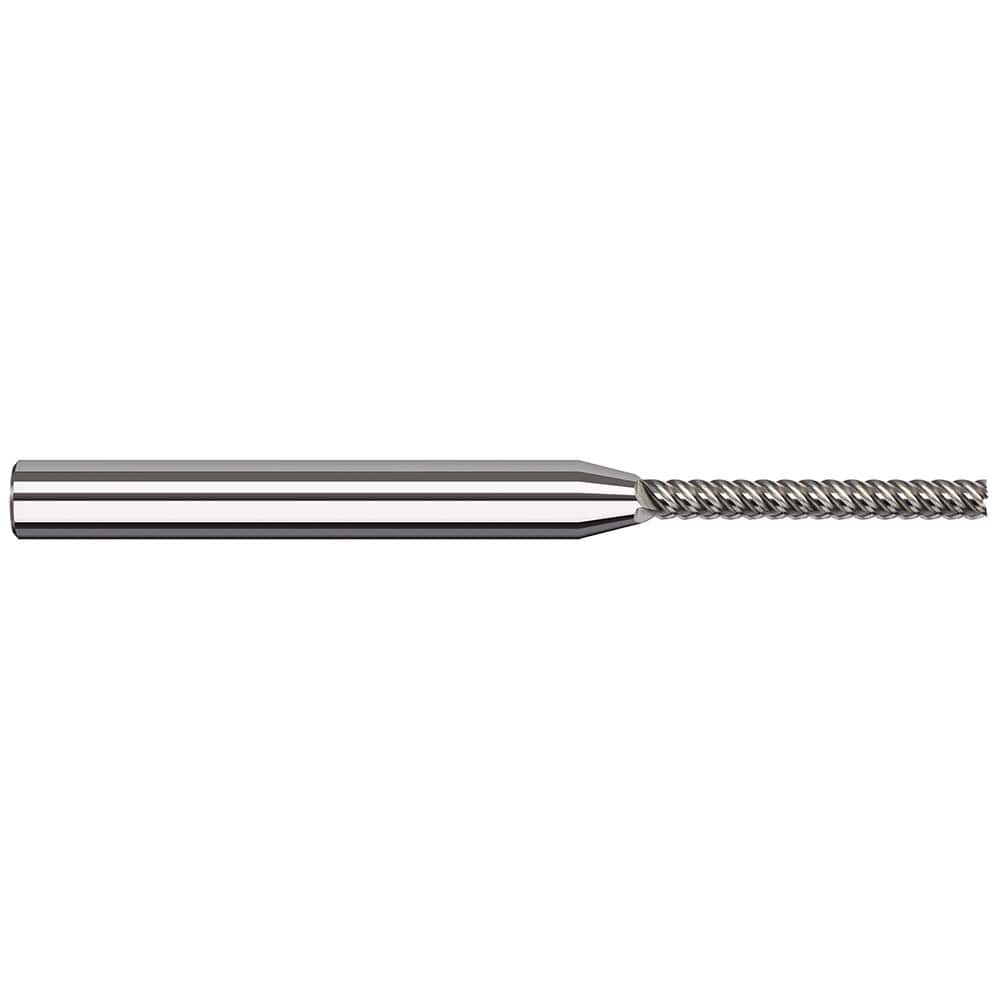

Square End Mill: 0.0394'' Dia, 0.315'' LOC, 5 Flutes, Solid Carbide Single End, Uncoated, 50 ° Variable Helix, RH Cut, RH Flute
Item #: 14954846
Brand: Harvey Tool
Model #: 907122
Product Specifications
| Mill Diameter (Decimal Inch) | 0.0394 |
| Mill Diameter (mm) | 1.00 |
| Number Of Flutes | 5 |
| Length of Cut (mm) | 8.00 |
| End Mill Material | Solid Carbide |
| End Type | Single |
| Centercutting | No |
| Cutting Direction | Right Hand |
| Finish/Coating | Bright/Uncoated |
| Shank Diameter (mm) | 4.00 |
| Helix Angle | 50 |
| Variable Helix | Yes |
| Extended Reach | No |
| Overall Length (mm) | 50.00 |
| Length Of Cut Range (Decimal Inch) | 0.3000 - 0.5000 |
| Length of Cut (Decimal Inch) | 0.3150 |
| Shank Diameter (Decimal Inch) | 0.1575 |
| Flute Direction | Right Hand |
| Helix Style | Medium |
