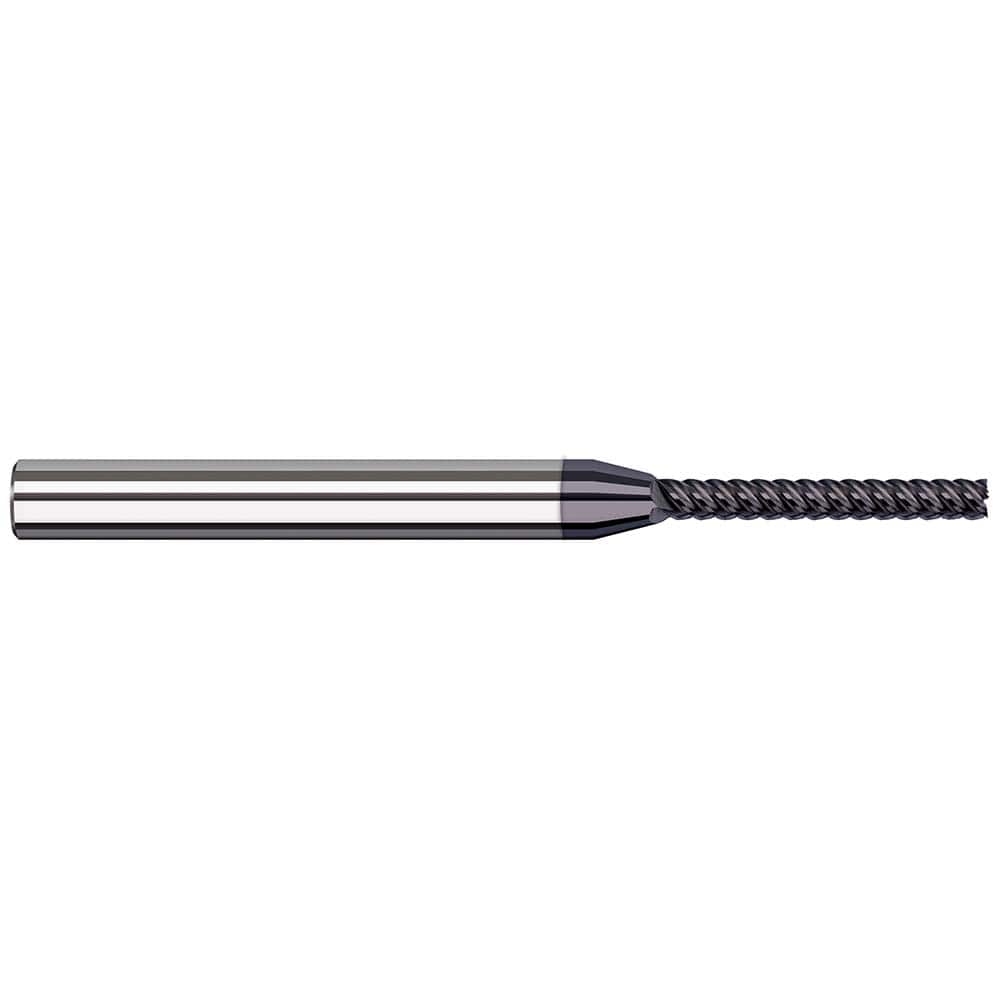

Harvey Tool - Square End Mills; Mill Diameter (Inch): 9/64 ; Mill Diameter (Decimal Inch): 0.1406 ; Length of Cut (Inch): 1-1/8 ; Length of Cut (Decimal Inch): 1.1250 ; Material: Solid Carbide ; Finish/Coating: AlTiN Nano
Item #: 14770838
Brand: Harvey Tool
Model #: 59109-C6
Product Specifications
Square End Mills; Mill Diameter (Inch): 9/64 ; Mill Diameter (Decimal Inch): 0.1406 ; Length of Cut (Inch): 1-1/8 ; Length of Cut (Decimal Inch): 1.1250 ; Material: Solid Carbide ; Finish/Coating: AlTiN Nano
| Mill Diameter (Inch) | 9/64 |
| Mill Diameter (Decimal Inch) | 0.1406 |
| Length of Cut (Inch) | 1-1/8 |
| Length of Cut (Decimal Inch) | 1.1250 |
| Material | Solid Carbide |
| Finish/Coating | AlTiN Nano |
| Shank Diameter (Inch) | 3/16 |
| Single or Double End | Single |
| Overall Length (Inch) | 3 |
| Overall Length (Decimal Inch) | 3.00000 |
| Center Cutting | NonCenter Cutting |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Helix Angle | 41 |
| Variable Helix | Yes |
| Series/List | Variable Helix End Mills for High Temp Alloys - Finishers - Square |
