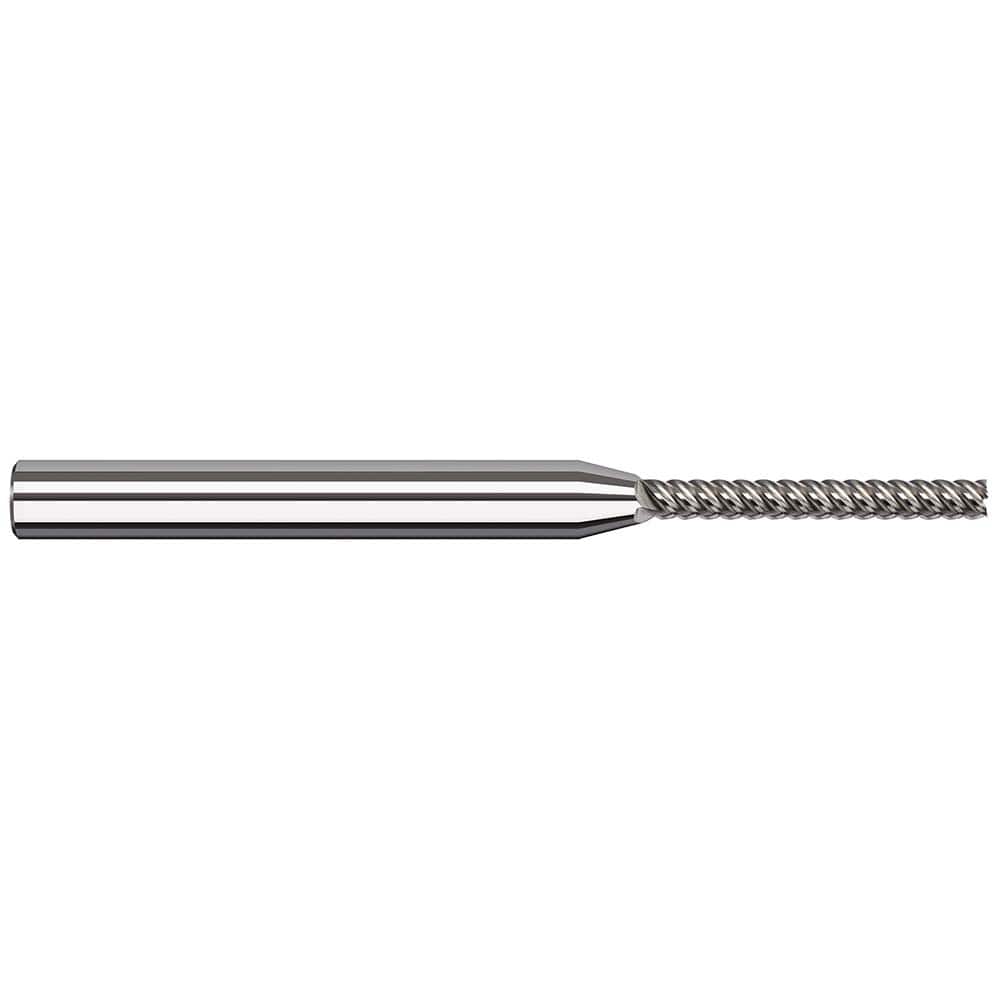

Square End Mill: 0.1'' Dia, 51/64'' LOC, 1/8'' Shank Dia, 2-1/2'' OAL, 5 Flutes, Solid Carbide Single End, Uncoated, 50 ° Variable Helix, RH Cut, RH Flute
Item #: 14770531
Brand: Harvey Tool
Model #: 67200
Product Specifications
| Mill Diameter (Decimal Inch) | 0.1000 |
| Number Of Flutes | 5 |
| Length of Cut (Inch) | 51/64 |
| End Mill Material | Solid Carbide |
| End Type | Single |
| Centercutting | No |
| Cutting Direction | Right Hand |
| Shank Diameter (Inch) | 1/8 |
| Finish/Coating | Bright/Uncoated |
| Overall Length (Inch) | 2-1/2 |
| Helix Angle | 50 |
| Variable Helix | Yes |
| Extended Reach | No |
| Length Of Cut Range (Decimal Inch) | 0.8000 - 1.0000 |
| Length of Cut (Decimal Inch) | 0.8000 |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Overall Length (Decimal Inch) | 2.5000 |
| Flute Direction | Right Hand |
| Helix Style | Medium |
