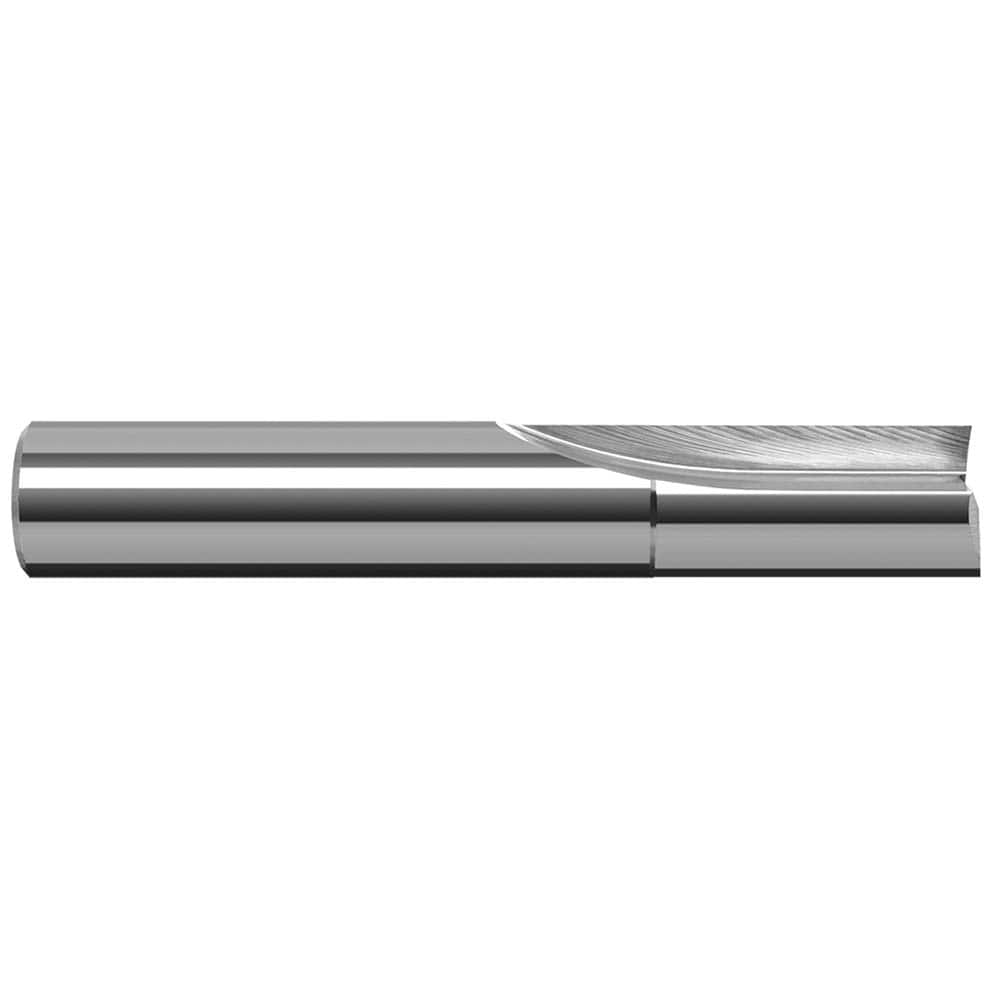

Square End Mill: 5/16'' Dia, 7/8'' LOC, 5/16'' Shank Dia, 2-1/2'' OAL, 2 Flutes, Solid Carbide Single End, Uncoated, Straight Flute, 0 ° Helix, RH Cut, RH Flute
Item #: 14770499
Brand: Harvey Tool
Model #: 14620
Product Specifications
| Mill Diameter (Inch) | 5/16 |
| Mill Diameter (Decimal Inch) | 0.3125 |
| Number Of Flutes | 2 |
| Length of Cut (Inch) | 7/8 |
| End Mill Material | Solid Carbide |
| End Type | Single |
| Centercutting | No |
| Cutting Direction | Right Hand |
| Shank Diameter (Inch) | 5/16 |
| Finish/Coating | Bright/Uncoated |
| Overall Length (Inch) | 2-1/2 |
| Helix Angle | 0 |
| Variable Helix | No |
| Extended Reach | No |
| Length Of Cut Range (Decimal Inch) | 0.8000 - 1.0000 |
| Length of Cut (Decimal Inch) | 0.8750 |
| Shank Diameter (Decimal Inch) | 0.3125 |
| Overall Length (Decimal Inch) | 2.5000 |
| Flute Direction | Right Hand |
| Flute Type | Straight |
| Helix Style | Medium |
