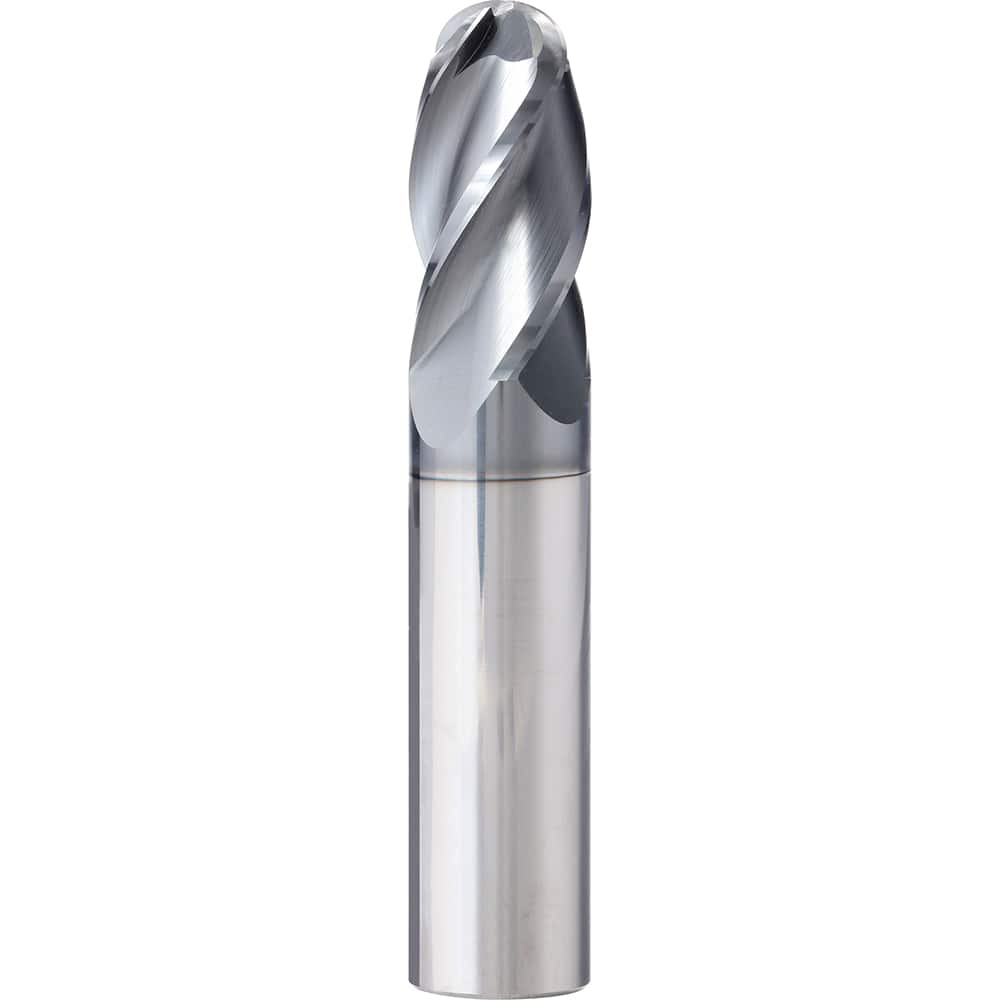

Supermill - Ball End Mills; Mill Diameter (Inch): 7/16 ; Mill Diameter (Decimal Inch): 0.4375 ; Number of Flutes: 4 ; Length of Cut (Inch): 5/8 ; Length of Cut (Decimal Inch): 0.6250 ; Material: Solid Carbide
Item #: 14763635
Brand: Supermill
Model #: SAPB437S
Product Specifications
Ball End Mills; Mill Diameter (Inch): 7/16 ; Mill Diameter (Decimal Inch): 0.4375 ; Number of Flutes: 4 ; Length of Cut (Inch): 5/8 ; Length of Cut (Decimal Inch): 0.6250 ; Material: Solid Carbide
| Mill Diameter (Inch) | 7/16 |
| Mill Diameter (Decimal Inch) | 0.4375 |
| Number of Flutes | 4 |
| Length of Cut (Inch) | 5/8 |
| Length of Cut (Decimal Inch) | 0.6250 |
| Material | Solid Carbide |
| Overall Length (Inch) | 2-1/2 |
| Overall Length (Decimal Inch) | 2.50000 |
| Shank Diameter (Inch) | 7/16 |
| Shank Diameter (Decimal Inch) | 0.4375 |
| Finish/Coating | AlCrN |
| Single or Double End | Single |
| Helix Angle | 35 |
| Variable Index | Yes |
| Variable Helix | No |
| Material Grade | Micrograin |
| Series/List | SAPB |
| Cutting Direction | Right Hand |
