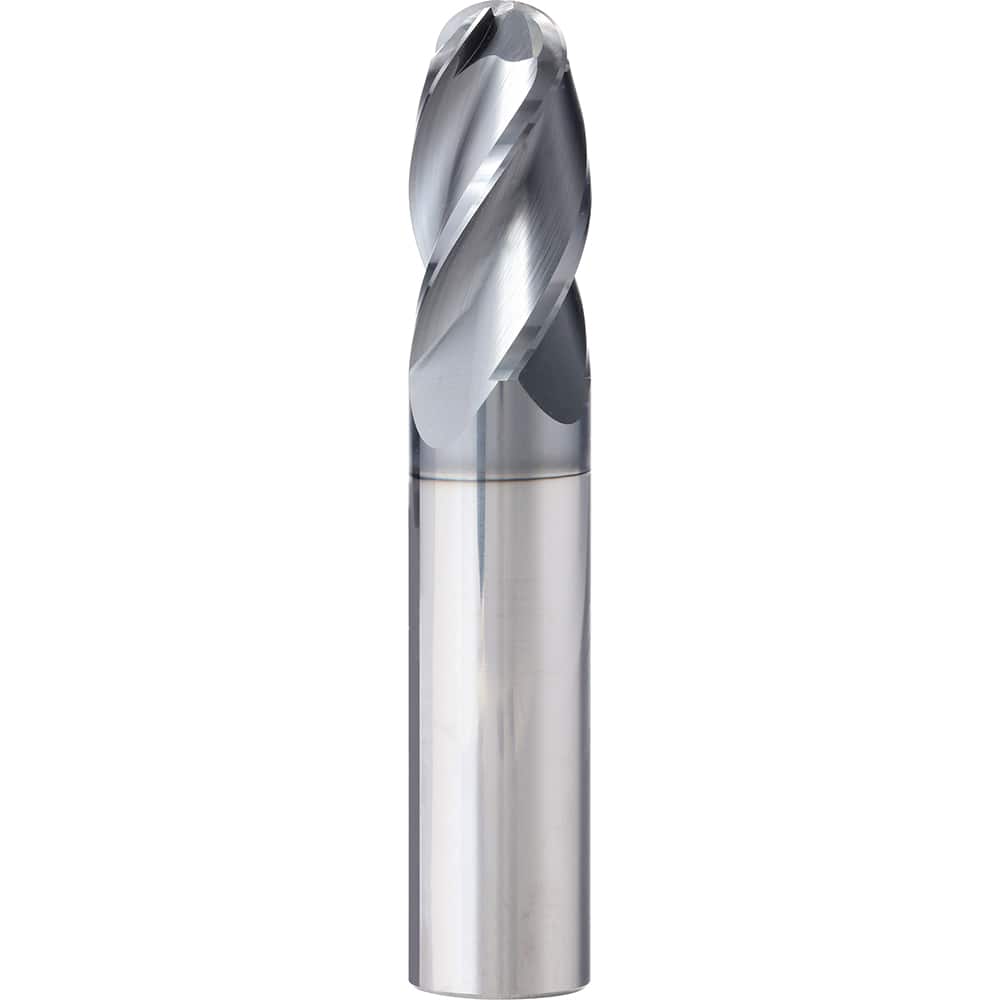

Ball End Mill: 0.4844″ Dia, 1″ LOC, 4 Flute, Solid Carbide 3″ OAL, 1/2″ Shank Dia, 35 ° Helix, AlCrN Coated, Single End, Series SAPB
Item #: 14763346
Brand: Supermill
Model #: SAPB484
Product Specifications
| Mill Diameter (Inch) | 31/64 |
| Mill Diameter (Decimal Inch) | 0.4844 |
| Length of Cut (Inch) | 1 |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| Helix Angle | 35 |
| Variable Index | Yes |
| Length Of Cut Range (Decimal Inch) | 1.0000 to 1.5000 |
| Variable Helix | No |
| Shank Diameter (Inch) | 1/2 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Overall Length (Inch) | 3 |
| Overall Length (Decimal Inch) | 3.0000 |
| Material Grade | Micrograin |
| Cutting Direction | Right Hand |
| Series | SAPB |
| Centercutting | Yes |
| Single Or Double End | Single |
| Number Of Flutes | 4 |
| Coating/Finish | AlCrN |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.0000 |
| Manufacturers Catalog Number | 21041 |
