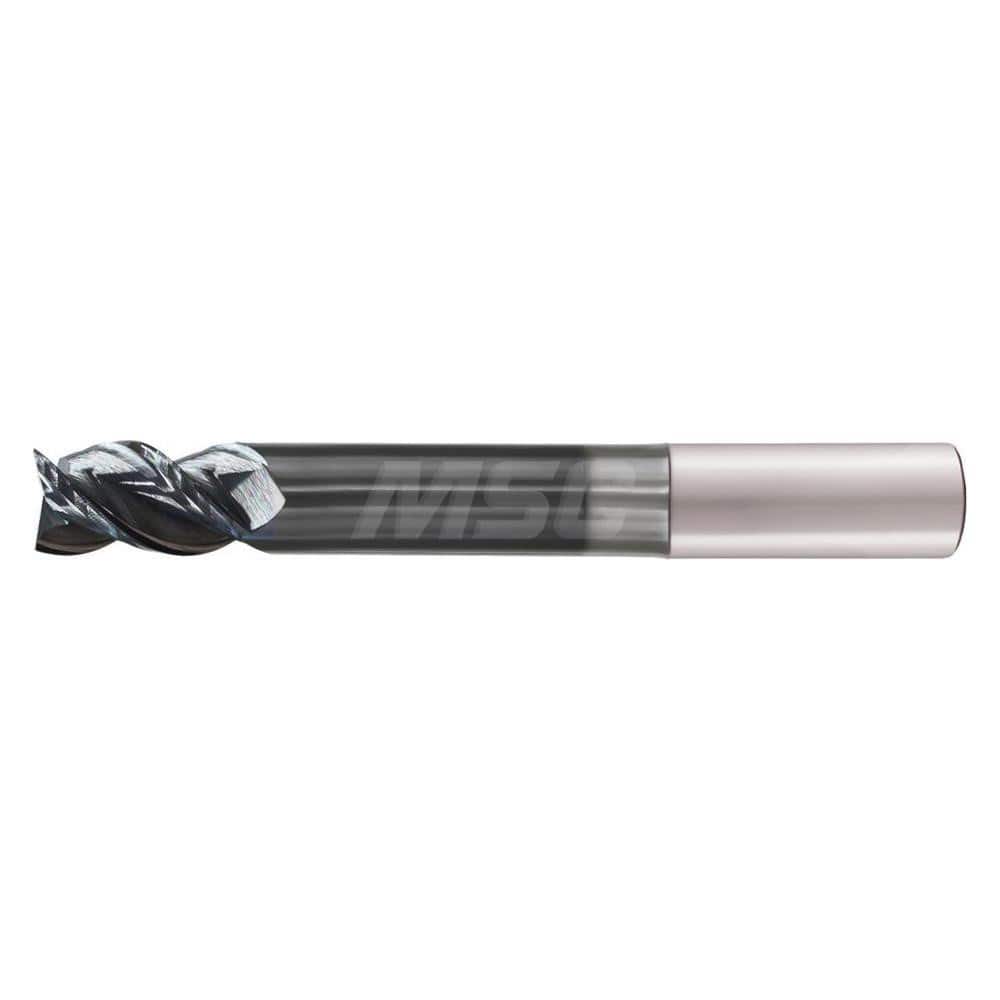

Corner Radius End Mill: 3/8″ Dia, 1″ LOC, 0.03″ Radius, 5 Flutes, Solid Carbide 3″ OAL, 3/8″ Shank Dia, 38 ° Helix, DLC Coated, Corner Radius End, Centercutting, Series Flash Solid
Item #: 14646913
Brand: Iscar
Model #: 3398397
Product Specifications
| Mill Diameter (Decimal Inch) | 0.3750 |
| Mill Diameter (Inch) | 3/8 |
| Length of Cut (Inch) | 1 |
| Corner Radius (Decimal Inch) | 0.0300 |
| Number Of Flutes | 5 |
| End Mill Material | Solid Carbide |
| Extended Reach | No |
| End Type | Corner Radius |
| Flute Type | Spiral |
| Helix Angle | 38 |
| Shank Type | Straight-Cylindrical |
| Centercutting | Yes |
| Variable Index | Yes |
| Variable Helix | No |
| Shank Diameter (Inch) | 3/8 |
| Overall Length (Inch) | 3 |
| Overall Length (Decimal Inch) | 3.0000 |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Material Grade | Submicron |
| Single Or Double End | Single |
| Manufacturers Catalog Number | ECI-5 .375-1.C.03VF3. |
| Coating/Finish | DLC |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.0000 |
