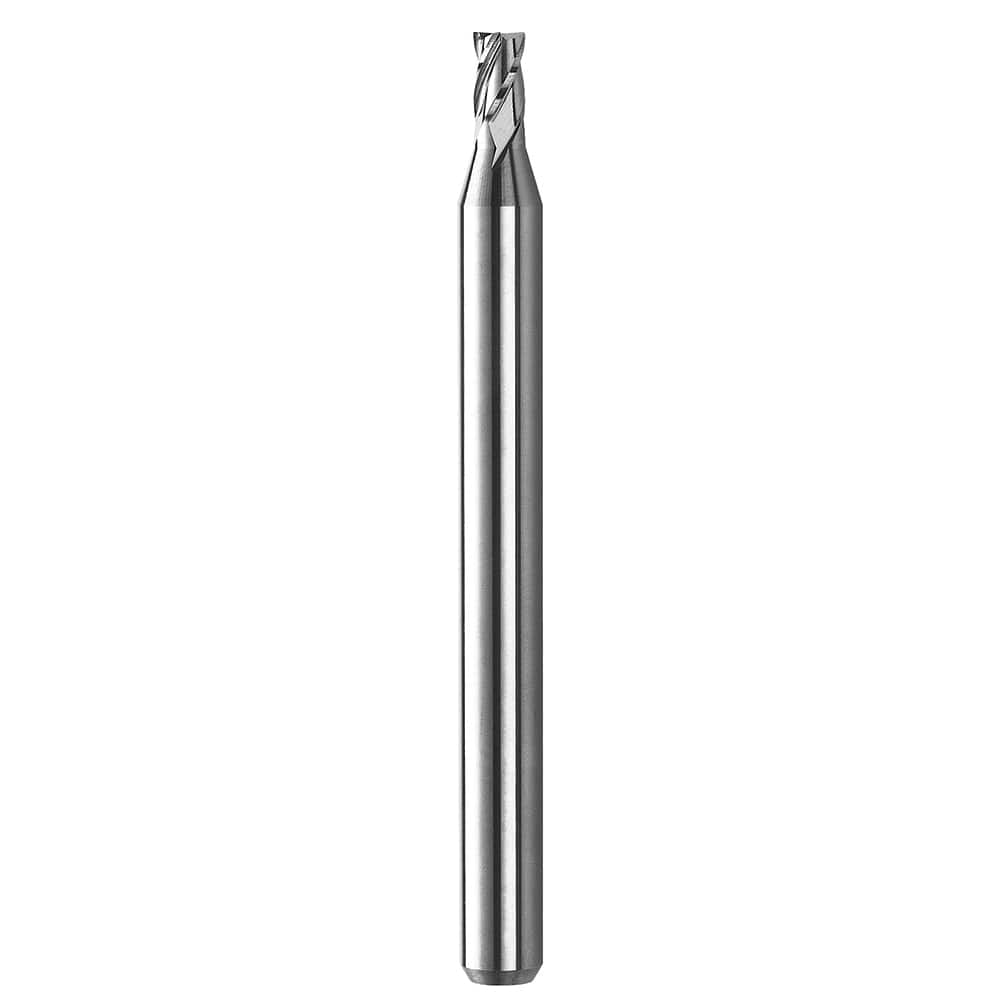

SGS - Square End Mills; Mill Diameter (mm): 3.00 ; Mill Diameter (Decimal Inch): 0.1181 ; Number of Flutes: 3 ; Length of Cut (mm): 9.0000 ; Length of Cut (Decimal Inch): 0.3543 ; Material: Solid Carbide
Item #: 14641278
Brand: SGS
Model #: 05371
Product Specifications
Square End Mills; Mill Diameter (mm): 3.00 ; Mill Diameter (Decimal Inch): 0.1181 ; Number of Flutes: 3 ; Length of Cut (mm): 9.0000 ; Length of Cut (Decimal Inch): 0.3543 ; Material: Solid Carbide
| Mill Diameter (mm) | 3.00 |
| Mill Diameter (Decimal Inch) | 0.1181 |
| Number of Flutes | 3 |
| Length of Cut (mm) | 9.0000 |
| Length of Cut (Decimal Inch) | 0.3543 |
| Material | Solid Carbide |
| Finish/Coating | AlTiN |
| Shank Diameter (mm) | 6.0000 |
| Shank Diameter (Inch) | 0.125 |
| Single or Double End | Single |
| Overall Length (mm) | 75.0000 |
| Overall Length (Decimal Inch) | 2.95280 |
| Center Cutting | Center Cutting |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Helix Angle | 35-45 |
| Variable Helix | Yes |
| Flute Type | Spiral |
| Length Type | Long Reach |
| Mill Diameter Tolerance (mm) | +0.0000/+0.0254 |
| Mill Diameter Tolerance (Decimal Inch) | +0.000 to -0.001 |
| Material Grade | Micrograin |
| Minimum Helix Angle | 35 |
| Chipbreaker | No |
| Overall Length Tolerance (Decimal Inch) | +0.062/-0.062 |
| PSC Code | 3455 |
| Shank Diameter Tolerance (mm) | h6 |
| Shank Diameter Tolerance (Decimal Inch) | h6 |
| Series/List | M032 |
