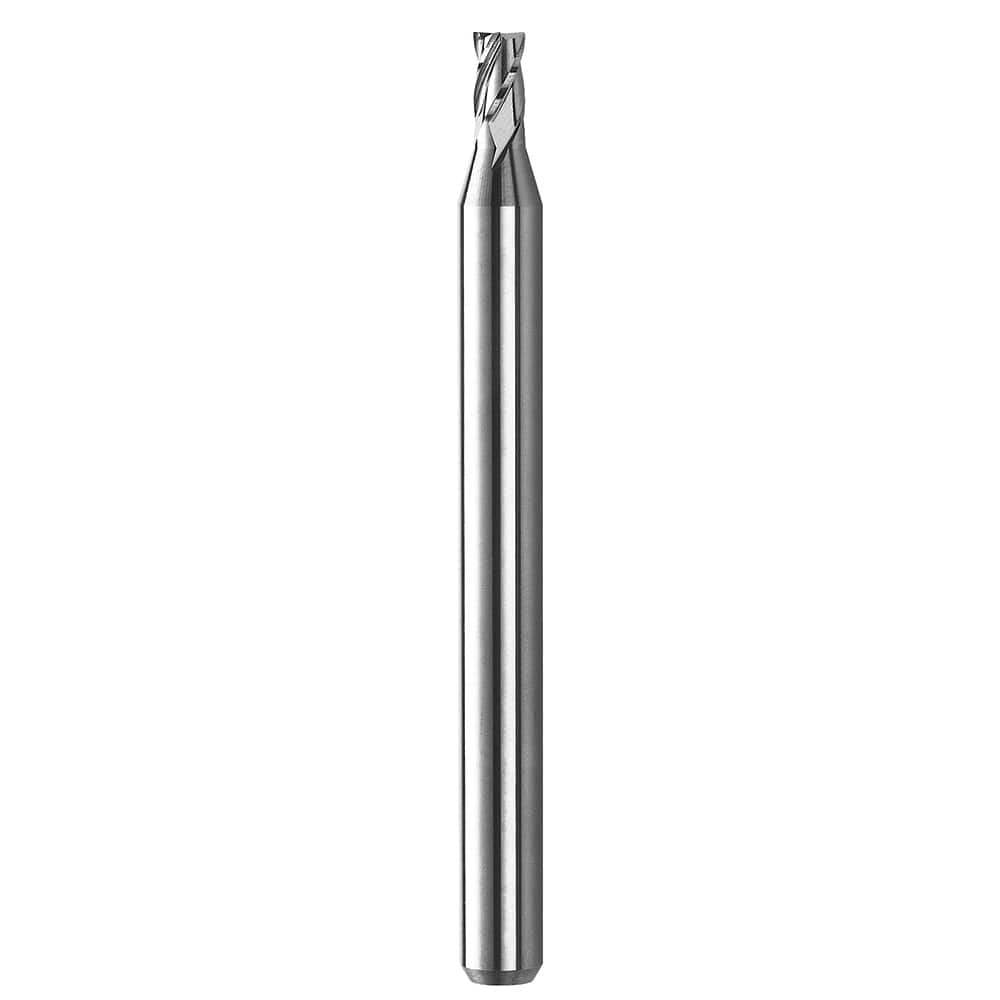

SGS - Square End Mills; Mill Diameter (Inch): 7/64 ; Mill Diameter (Decimal Inch): 0.1094 ; Number of Flutes: 3 ; Length of Cut (Inch): 0.438 ; Length of Cut (Decimal Inch): 0.4380 ; Material: Solid Carbide
Item #: 14636294
Brand: SGS
Model #: 05304
Product Specifications
Square End Mills; Mill Diameter (Inch): 7/64 ; Mill Diameter (Decimal Inch): 0.1094 ; Number of Flutes: 3 ; Length of Cut (Inch): 0.438 ; Length of Cut (Decimal Inch): 0.4380 ; Material: Solid Carbide
| Mill Diameter (Inch) | 7/64 |
| Mill Diameter (Decimal Inch) | 0.1094 |
| Number of Flutes | 3 |
| Length of Cut (Inch) | 0.438 |
| Length of Cut (Decimal Inch) | 0.4380 |
| Material | Solid Carbide |
| Finish/Coating | AlTiN |
| Shank Diameter (Inch) | 1/4 |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Single or Double End | Single |
| Overall Length (Inch) | 2-1/2 |
| Overall Length (Decimal Inch) | 2.50000 |
| Center Cutting | Center Cutting |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Helix Angle | 35-45 |
| Variable Helix | Yes |
| Flute Type | Spiral |
| Length Type | Regular |
| Mill Diameter Tolerance (mm) | +0.0000/+0.0254 |
| Mill Diameter Tolerance (Decimal Inch) | +0.000 to -0.001 |
| Material Grade | Micrograin |
| Minimum Helix Angle | 35 |
| Chipbreaker | No |
| Overall Length Tolerance (Decimal Inch) | +0.062/-0.062 |
| PSC Code | 3455 |
| Shank Diameter Tolerance (mm) | h6 |
| Shank Diameter Tolerance (Decimal Inch) | h6 |
| Series/List | M032 |
