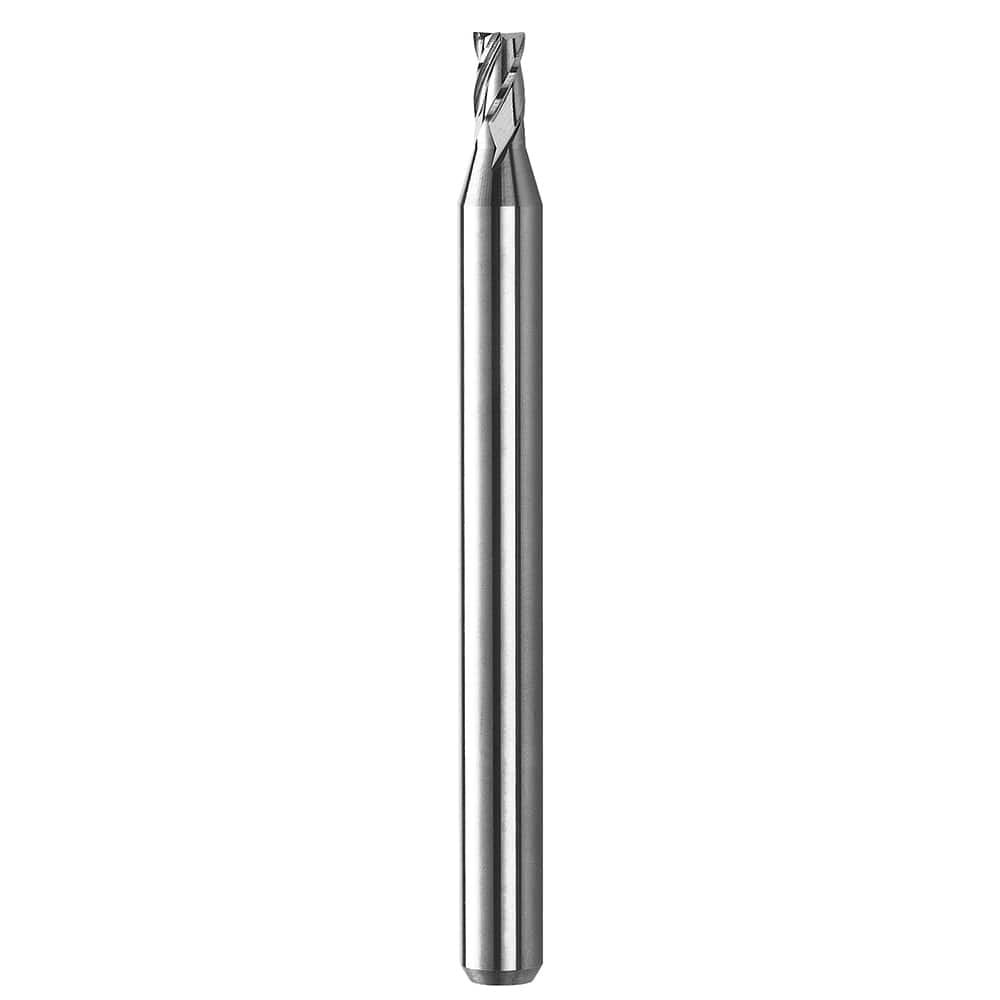

SGS - Corner Radius & Corner Chamfer End Mills; Mill Diameter (Decimal Inch): 0.0400 ; End Type: Corner Radius ; Corner Radius (Inch): 0.01 ; Number of Flutes: 2 ; Material: Solid Carbide ; Finish/Coating: TI-NAMITE-A
Item #: 14631188
Brand: SGS
Model #: 08656
Product Specifications
Corner Radius & Corner Chamfer End Mills; Mill Diameter (Decimal Inch): 0.0400 ; End Type: Corner Radius ; Corner Radius (Inch): 0.01 ; Number of Flutes: 2 ; Material: Solid Carbide ; Finish/Coating: TI-NAMITE-A
| Mill Diameter (Decimal Inch) | 0.0400 |
| End Type | Corner Radius |
| Corner Radius (Inch) | 0.01 |
| Number of Flutes | 2 |
| Material | Solid Carbide |
| Finish/Coating | TI-NAMITE-A |
| Length of Cut (Decimal Inch) | 0.0600 |
| Shank Diameter (Inch) | 1/8 |
| Overall Length (Inch) | 1-1/2 |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Helix Angle | 30 |
| Variable Index | Yes |
| Variable Helix | Yes |
| Material Grade | Micrograin |
| Single or Double End | Single |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Mill Diameter Tolerance (mm) | +0.0000/+0.0254 |
| Mill Diameter Tolerance (Decimal Inch) | +0.000 to -0.001 |
| Shank Diameter Tolerance (mm) | h6 |
| Shank Diameter Tolerance (Decimal Inch) | h6 |
| Extended Reach | No |
| Shank Type | Cylindrical |
| PSC Code | 3455 |
| Series/List | M2C |
| Chipbreaker | No |
