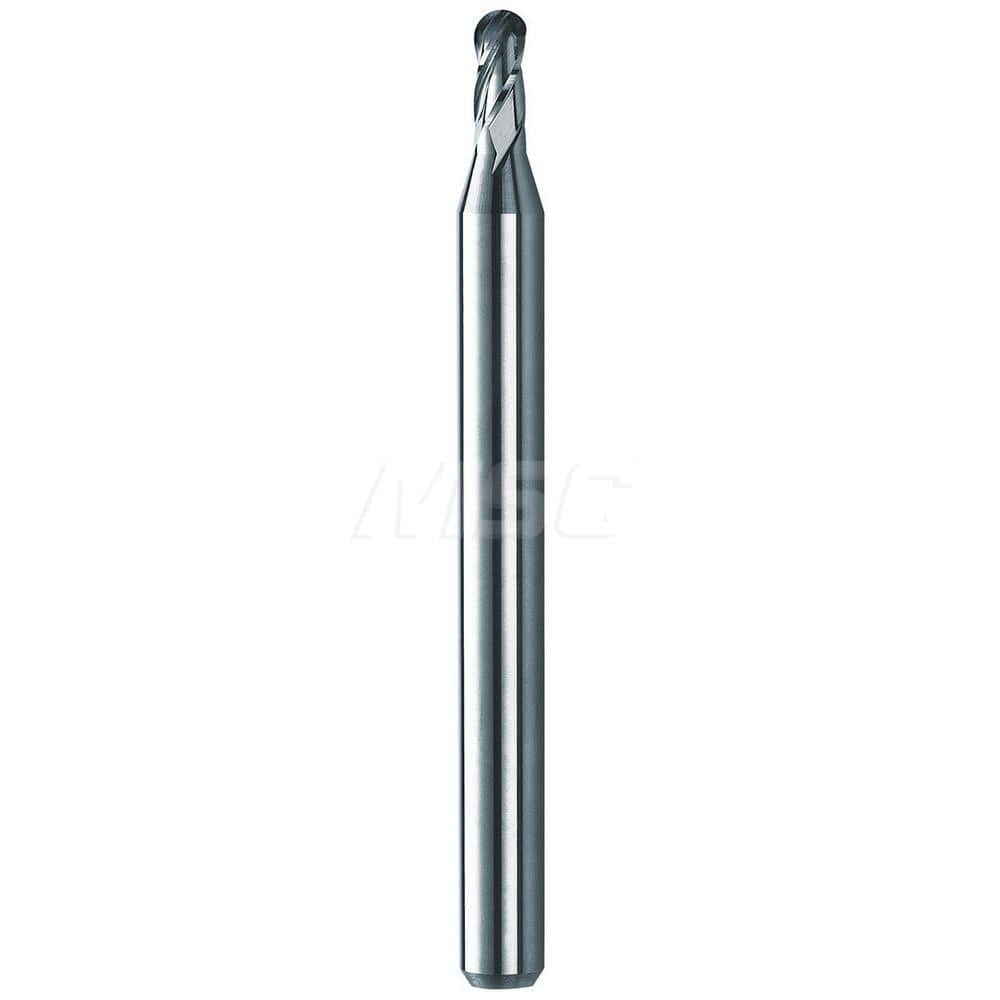

Ball End Mill: 0.031″ Dia, 0.047″ LOC, 4 Flute, Solid Carbide 1-1/2″ OAL, 1/8″ Shank Dia, 30 ° Helix, AlTiN Coated, Single End, Series M4B
Item #: 14629430
Brand: SGS
Model #: 03092
Product Specifications
| Mill Diameter (Decimal Inch) | 0.0310 |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| End Type | Ball |
| Extended Reach | No |
| Helix Angle | 30 |
| Variable Index | No |
| Length Of Cut Range (Decimal Inch) | 0.0000 to 0.0500 |
| Variable Helix | No |
| Length Type | Regular |
| Shank Diameter (Inch) | 1/8 |
| Overall Length (Inch) | 1-1/2 |
| Shank Diameter Tolerance | h6 |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Series | M4B |
| Flute Type | Spiral |
| Product Service Code | 3455 |
| Centercutting | Yes |
| Single Or Double End | Single |
| Number Of Flutes | 4 |
| Coating/Finish | AlTiN |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.0470 |
