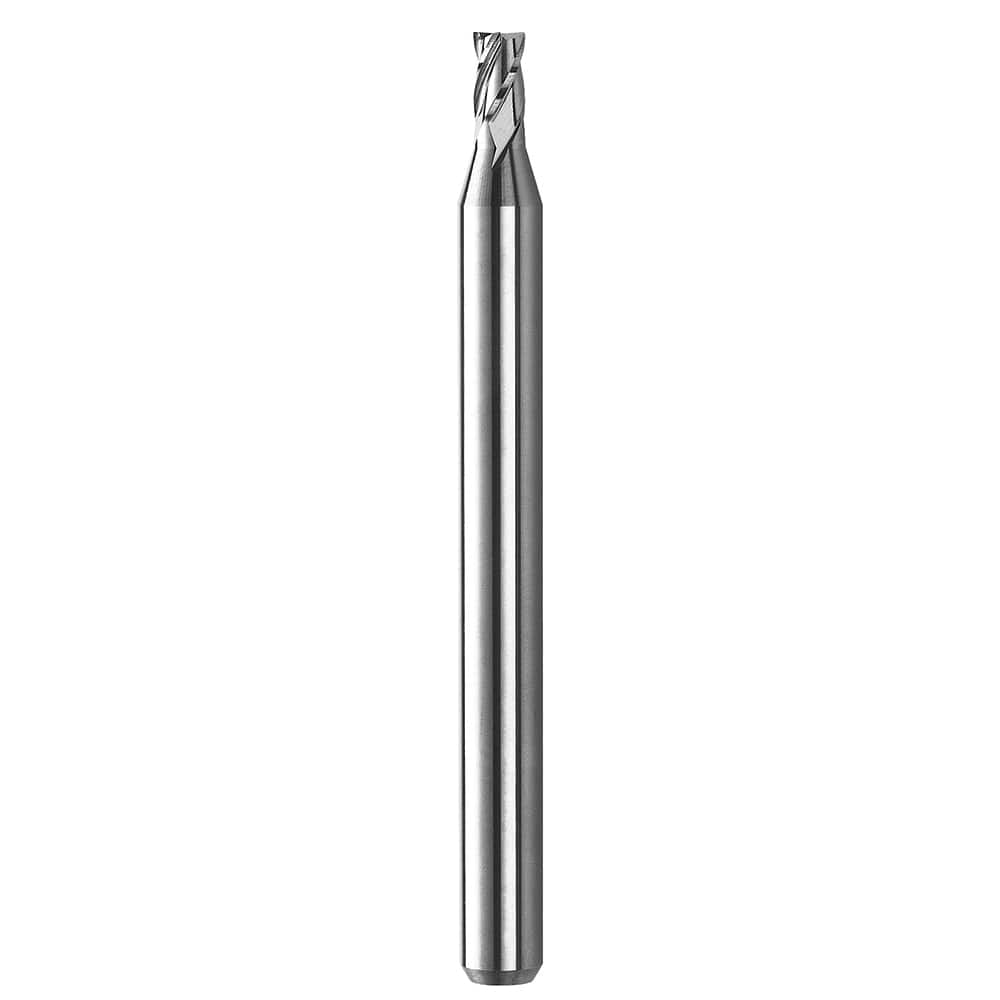

SGS - Corner Radius & Corner Chamfer End Mills; Mill Diameter (mm): 1.50 ; Mill Diameter (Decimal Inch): 0.0591 ; End Type: Corner Radius ; Corner Radius (mm): 0.3000 ; Number of Flutes: 3 ; Material: Solid Carbide
Item #: 14626360
Brand: SGS
Model #: 05318
Product Specifications
Corner Radius & Corner Chamfer End Mills; Mill Diameter (mm): 1.50 ; Mill Diameter (Decimal Inch): 0.0591 ; End Type: Corner Radius ; Corner Radius (mm): 0.3000 ; Number of Flutes: 3 ; Material: Solid Carbide
| Mill Diameter (mm) | 1.50 |
| Mill Diameter (Decimal Inch) | 0.0591 |
| End Type | Corner Radius |
| Corner Radius (mm) | 0.3000 |
| Number of Flutes | 3 |
| Material | Solid Carbide |
| Finish/Coating | TI-NAMITE-A |
| Length of Cut (mm) | 4.5000 |
| Shank Diameter (mm) | 6.0000 |
| Overall Length (mm) | 63.5000 |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Helix Angle | 35-45 |
| Variable Index | Yes |
| Variable Helix | Yes |
| Material Grade | Micrograin |
| Single or Double End | Single |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Mill Diameter Tolerance (mm) | +0.0000/+0.0254 |
| Shank Diameter Tolerance (mm) | h6 |
| Extended Reach | Yes |
| Shank Type | Cylindrical |
| PSC Code | 3455 |
| Series/List | M032 |
| Chipbreaker | No |
