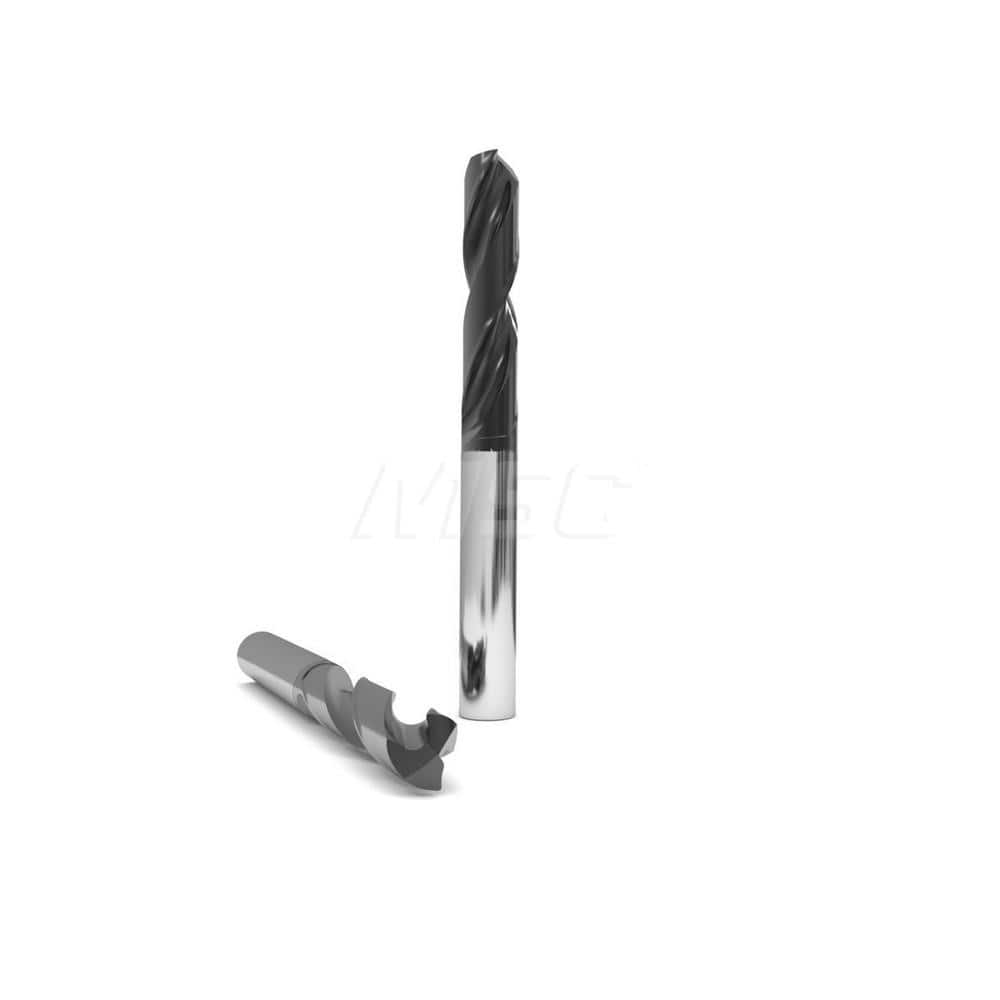

Jobber Length Drill Bit: 0.2953″ Dia, 140 °, Solid Carbide AdvaTech Finish, Right Hand Cut, Helical Flute, Straight-Cylindrical Shank, Series 4005 ECODRILL
Item #: 14572259
Brand: GWS
Model #: 400377
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.2953 |
| Drill Bit Size (mm) | 7.50 |
| Drill Bit Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Drill Bit Finish/Coating | AdvaTech |
| Drill Point Angle (Degrees) | 140 |
| Flute Type | Helical |
| Point Type | Self Centering |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number of Flutes | 2 |
| Overall Length (mm) | 106.00 |
| Series | 4005 ECODRILL |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 8.00 |
| Maximum Drilling Depth (mm) | 37.50 |
| Drill Bit Grade | High Performance |
| Drill Bit Size Range (Decimal Inch) | 0.2500 - 0.3000 |
| Drill Bit Size Range (mm) | 7.00 - 8.00 |
| Material Grade | P1; P2; P3; N1; M1; N2; M2; K1; K2 |
