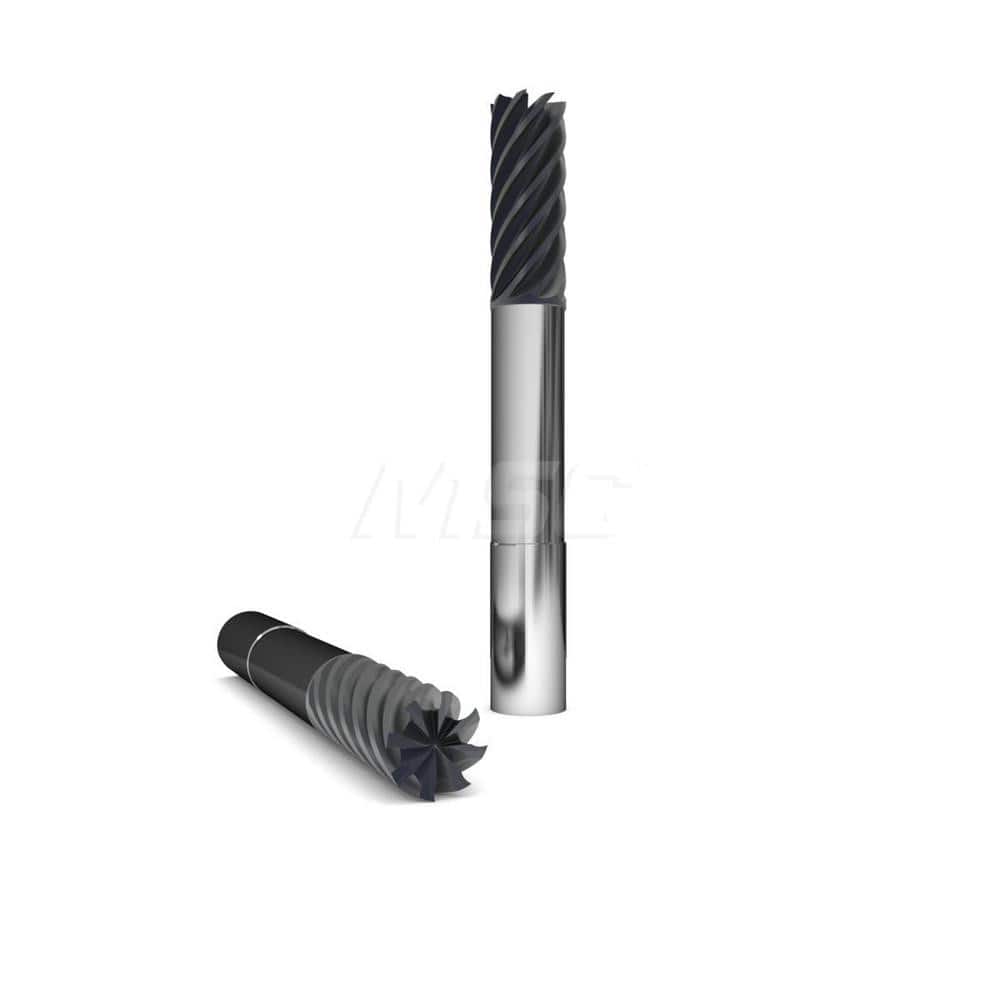

Square End Mill: 5/8'' Dia, 3/4'' LOC, 5/8'' Shank Dia, 4'' OAL, 8 Flutes, Solid Carbide Single End, AlCrO-MAX Finish, Upcut Flute, 40 ° Helix, Centercutting, RH Cut, RH Flute, Series 285
Item #: 14558845
Brand: GWS
Model #: 317349
Product Specifications
| Mill Diameter (Inch) | 5/8 |
| Mill Diameter (Decimal Inch) | 0.6250 |
| Number Of Flutes | 8 |
| Length of Cut (Inch) | 3/4 |
| End Mill Material | Solid Carbide |
| End Type | Single |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Shank Diameter (Inch) | 5/8 |
| Finish/Coating | AlCrO-MAX |
| Overall Length (Inch) | 4 |
| Helix Angle | 40 |
| Variable Helix | No |
| Variable Index | No |
| Extended Reach | Yes |
| Length of Cut (Decimal Inch) | 0.7500 |
| Material Grade | Submicron |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Overall Length (Decimal Inch) | 4.0000 |
| Flute Direction | Right Hand |
| Flute Type | Upcut |
| Reach Length (Inch) | 1-5/8 |
| Series | 285 |
