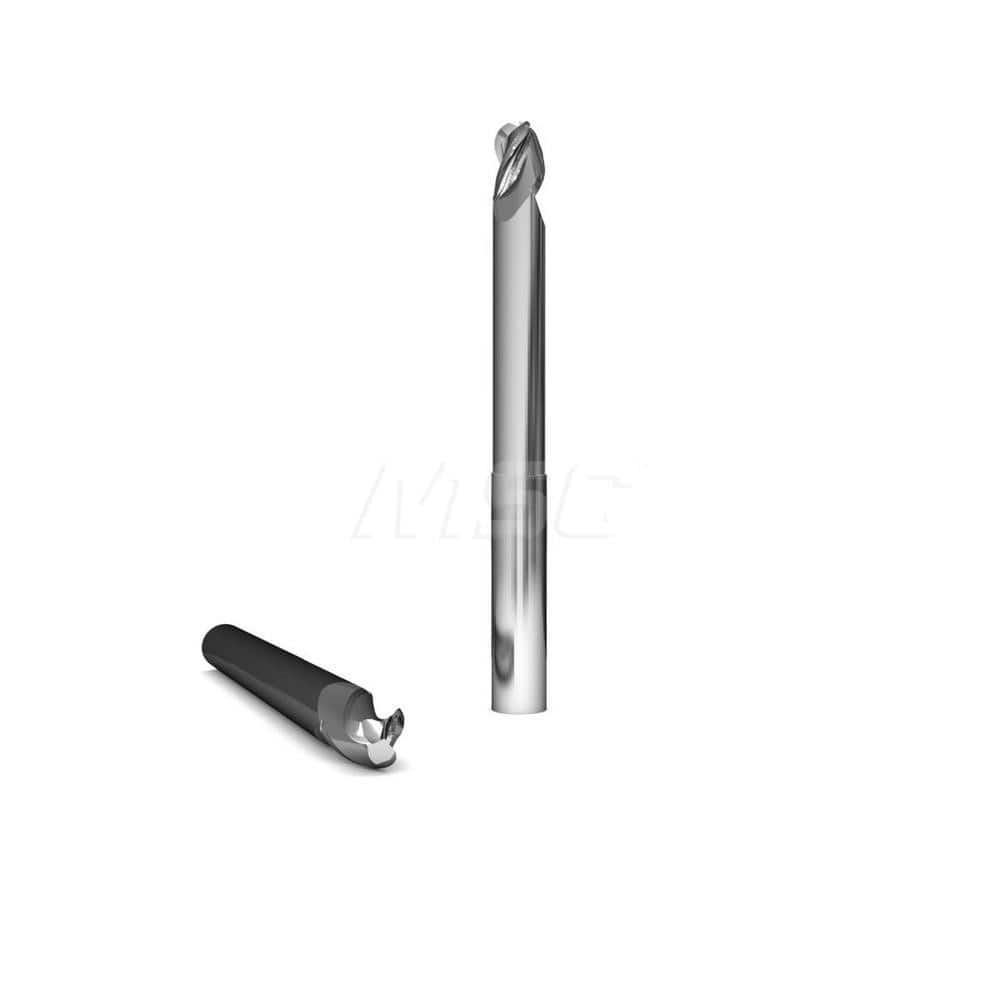

Ball End Mill: 0.625″ Dia, 3 Flute, Solid Carbide 3-1/2″ OAL, 5/8″ Shank Dia, 37 ° Helix, ZrN Coated, Single End, Series 2047
Item #: 14553648
Brand: GWS
Model #: 315886
Product Specifications
| Mill Diameter (Inch) | 5/8 |
| Mill Diameter (Decimal Inch) | 0.6250 |
| Length of Cut (Inch) | 3/4 |
| End Mill Material | Solid Carbide |
| End Type | Ball |
| Extended Reach | Yes |
| Helix Angle | 37 |
| Variable Index | No |
| Variable Helix | No |
| Shank Diameter (Inch) | 5/8 |
| Neck Length (Inch) | 1-5/8 |
| Reach Length (Inch) | 1-5/8 |
| Overall Length (Inch) | 3-1/2 |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Series | 2047 |
| Centercutting | Yes |
| Single Or Double End | Single |
| Number Of Flutes | 3 |
| Coating/Finish | ZrN |
| Manufacturers Catalog Number | 350N625122BNC5 |
