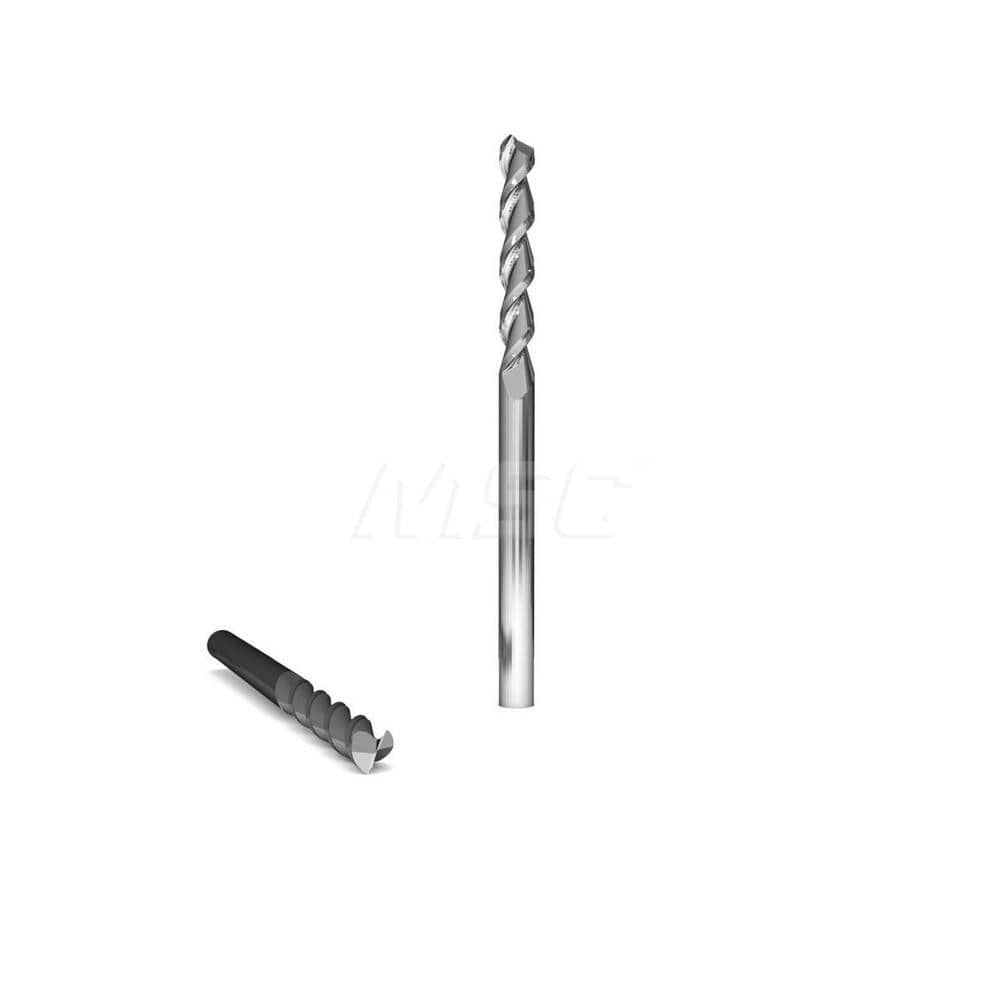

Square End Mill: 3/4'' Dia, 4'' LOC, 3/4'' Shank Dia, 7'' OAL, 2 Flutes, Solid Carbide Single End, Uncoated, Upcut Flute, 45 ° Helix, Centercutting, RH Cut, RH Flute, Series 2010
Item #: 14552319
Brand: GWS
Model #: 313492
Product Specifications
| Mill Diameter (Inch) | 3/4 |
| Mill Diameter (Decimal Inch) | 0.7500 |
| Number Of Flutes | 2 |
| Length of Cut (Inch) | 4 |
| End Mill Material | Solid Carbide |
| End Type | Single |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Shank Diameter (Inch) | 3/4 |
| Finish/Coating | Bright/Uncoated |
| Overall Length (Inch) | 7 |
| Helix Angle | 45 |
| Variable Helix | No |
| Variable Index | No |
| Extended Reach | No |
| Length of Cut (Decimal Inch) | 4.0000 |
| Material Grade | Submicron |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Overall Length (Decimal Inch) | 7.0000 |
| Flute Direction | Right Hand |
| Flute Type | Upcut |
| Series | 2010 |
