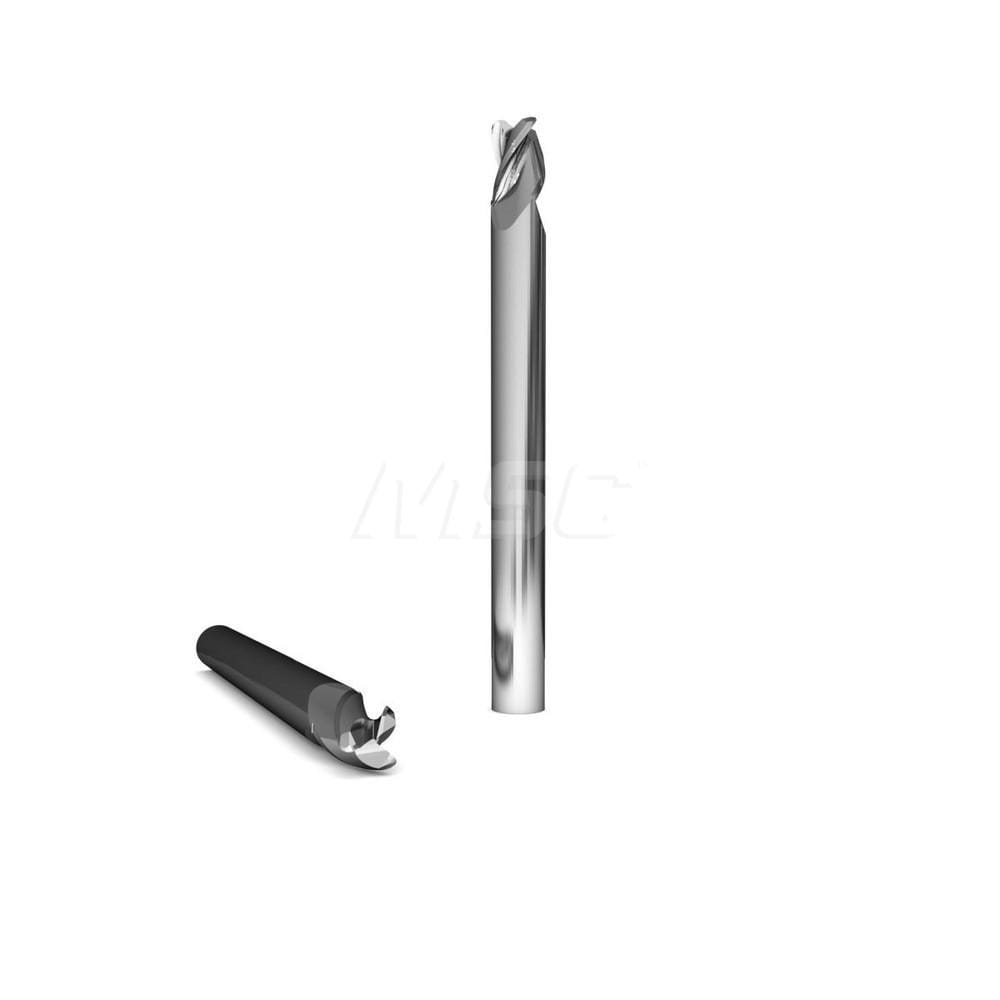

Square End Mill: 3/4'' Dia, 3-1/2'' LOC, 3/4'' Shank Dia, 6'' OAL, 3 Flutes, Solid Carbide Single End, ZrN Finish, Upcut Flute, 37 ° Helix, Centercutting, RH Cut, RH Flute, Series 2030
Item #: 14551485
Brand: GWS
Model #: 315033
Product Specifications
| Mill Diameter (Inch) | 3/4 |
| Mill Diameter (Decimal Inch) | 0.7500 |
| Number Of Flutes | 3 |
| Length of Cut (Inch) | 3-1/2 |
| End Mill Material | Solid Carbide |
| End Type | Single |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Shank Diameter (Inch) | 3/4 |
| Finish/Coating | ZrN |
| Overall Length (Inch) | 6 |
| Helix Angle | 37 |
| Variable Helix | No |
| Variable Index | No |
| Extended Reach | No |
| Length of Cut (Decimal Inch) | 3.5000 |
| Material Grade | Submicron |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Overall Length (Decimal Inch) | 6.0000 |
| Flute Direction | Right Hand |
| Flute Type | Upcut |
| Series | 2030 |
