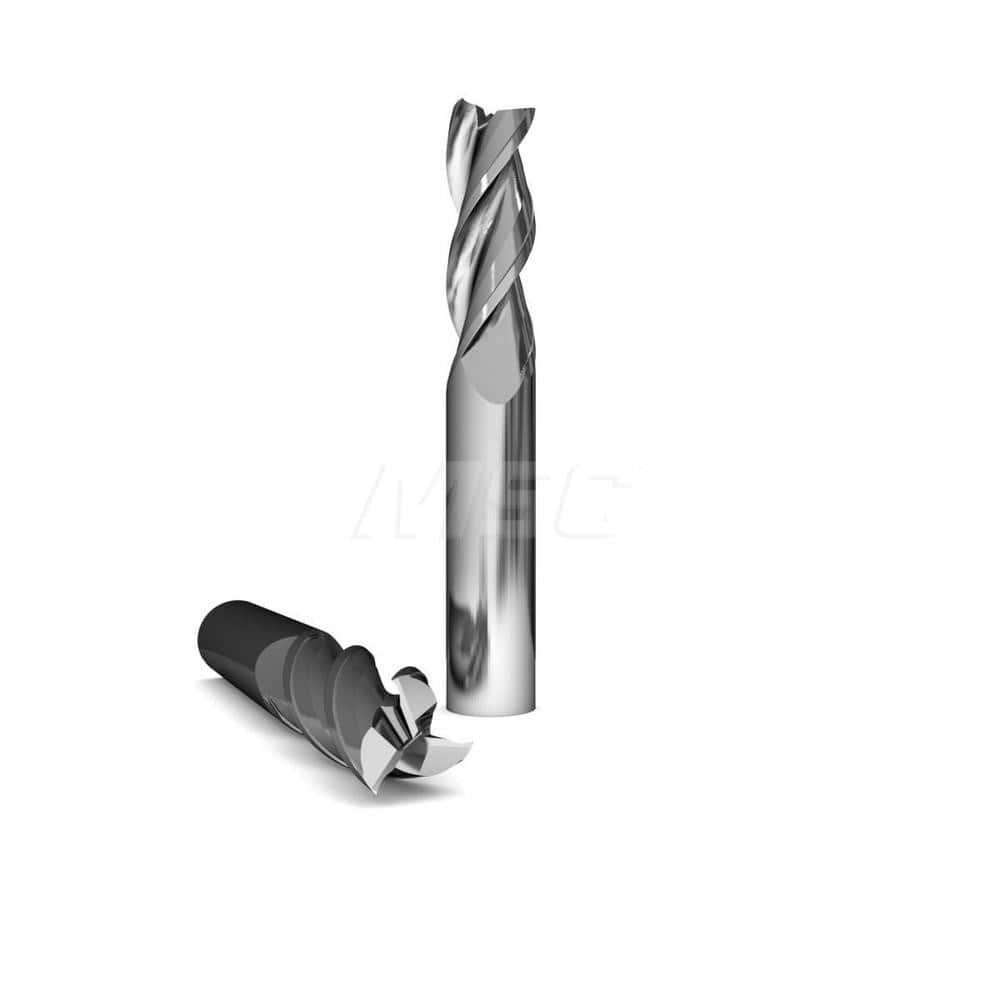

Square End Mill: 1'' Dia, 1-1/4'' LOC, 1'' Shank Dia, 4'' OAL, 3 Flutes, Solid Carbide Single End, ZrN Finish, Upcut Flute, 37 ° Helix, Centercutting, RH Cut, RH Flute, Series 1025 & Alumigator
Item #: 14547574
Brand: GWS
Model #: 101065
Product Specifications
| Mill Diameter (Inch) | 1 |
| Mill Diameter (Decimal Inch) | 1.0000 |
| Number Of Flutes | 3 |
| Length of Cut (Inch) | 1-1/4 |
| End Mill Material | Solid Carbide |
| End Type | Single |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Shank Diameter (Inch) | 1 |
| Finish/Coating | ZrN |
| Overall Length (Inch) | 4 |
| Helix Angle | 37 |
| Variable Helix | No |
| Variable Index | No |
| Extended Reach | No |
| Length of Cut (Decimal Inch) | 1.2500 |
| Material Grade | Submicron |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Overall Length (Decimal Inch) | 4.0000 |
| Flute Direction | Right Hand |
| Flute Type | Upcut |
| Series | 1025; Alumigator |
