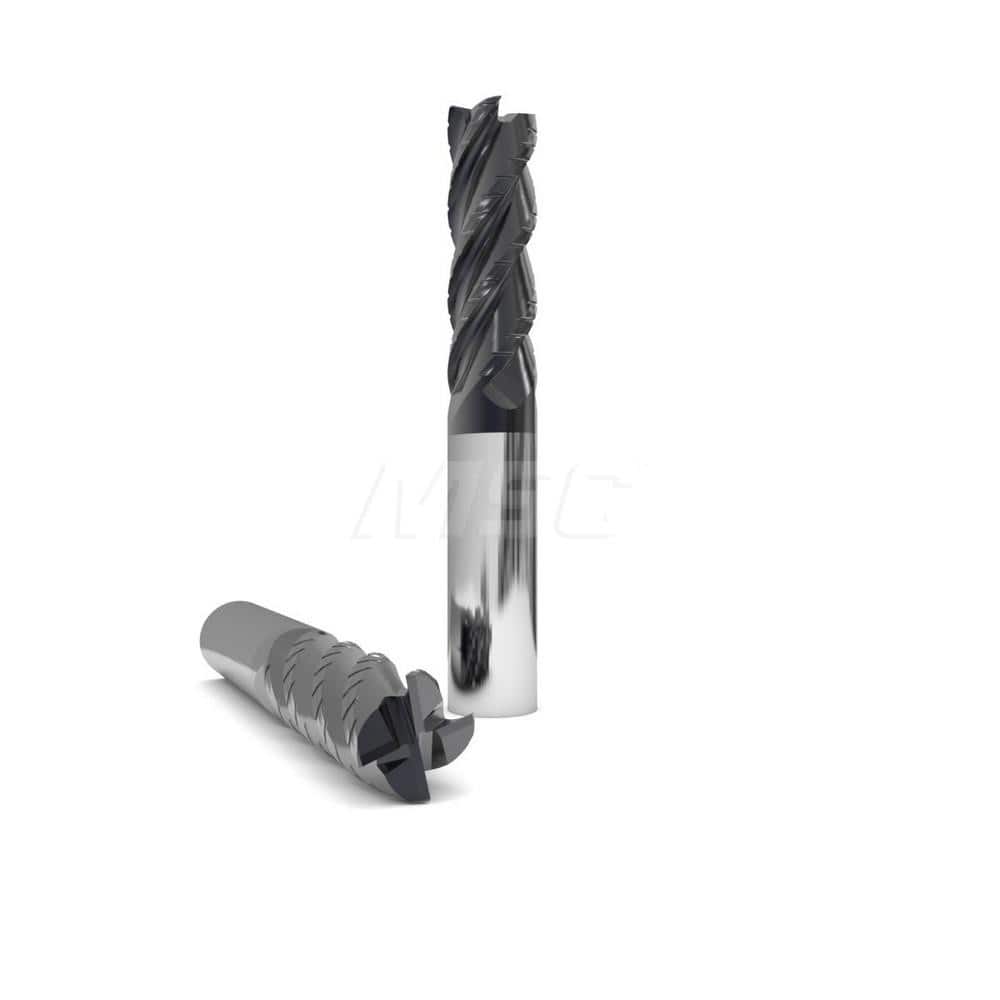

Square End Mill: 1/8'' Dia, 1/4'' LOC, 1/8'' Shank Dia, 1-1/2'' OAL, 4 Flutes, Solid Carbide Single End, nACo Finish, Upcut Flute, 38 ™ Variable Helix, Centercutting, RH Cut, RH Flute, Series 1031 & Hurrimill
Item #: 14546857
Brand: GWS
Model #: 107988
Product Specifications
| Mill Diameter (Inch) | 1/8 |
| Mill Diameter (Decimal Inch) | 0.1250 |
| Number Of Flutes | 4 |
| Length of Cut (Inch) | 1/4 |
| End Mill Material | Solid Carbide |
| End Type | Single |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Shank Diameter (Inch) | 1/8 |
| Finish/Coating | nACo |
| Overall Length (Inch) | 1-1/2 |
| Helix Angle | 38 |
| Variable Helix | Yes |
| Variable Index | Yes |
| Extended Reach | No |
| Length of Cut (Decimal Inch) | 0.2500 |
| Material Grade | Submicron |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Overall Length (Decimal Inch) | 1.5000 |
| Flute Direction | Right Hand |
| Flute Type | Upcut |
| Series | 1031; Hurrimill |
