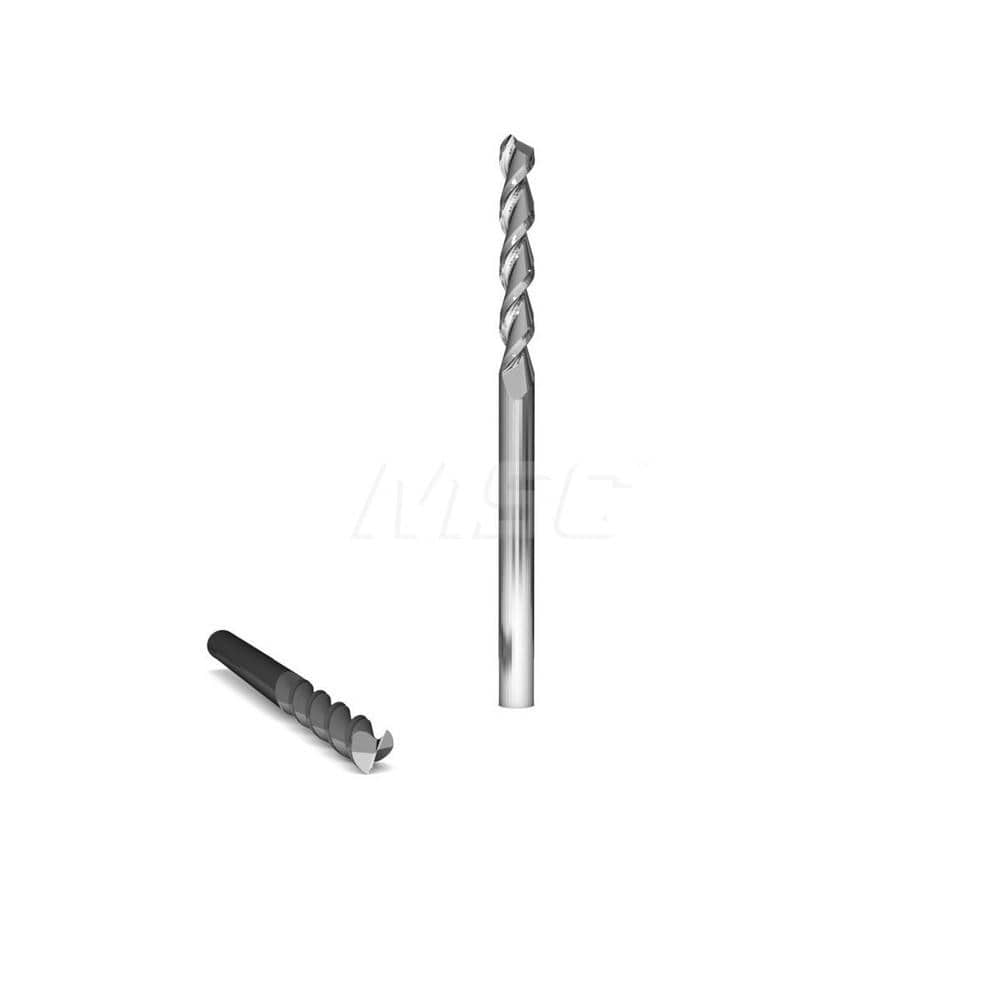

Square End Mill: 1/8'' Dia, 5/8'' LOC, 1/8'' Shank Dia, 2'' OAL, 2 Flutes, Solid Carbide Single End, ZrN Finish, Upcut Flute, 45 ° Helix, Centercutting, RH Cut, RH Flute, Series 2010
Item #: 14546386
Brand: GWS
Model #: 312934
Product Specifications
| Mill Diameter (Inch) | 1/8 |
| Mill Diameter (Decimal Inch) | 0.1250 |
| Number Of Flutes | 2 |
| Length of Cut (Inch) | 5/8 |
| End Mill Material | Solid Carbide |
| End Type | Single |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Shank Diameter (Inch) | 1/8 |
| Finish/Coating | ZrN |
| Overall Length (Inch) | 2 |
| Helix Angle | 45 |
| Variable Helix | No |
| Variable Index | No |
| Extended Reach | No |
| Length of Cut (Decimal Inch) | 0.6250 |
| Material Grade | Submicron |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Overall Length (Decimal Inch) | 2.0000 |
| Flute Direction | Right Hand |
| Flute Type | Upcut |
| Series | 2010 |
