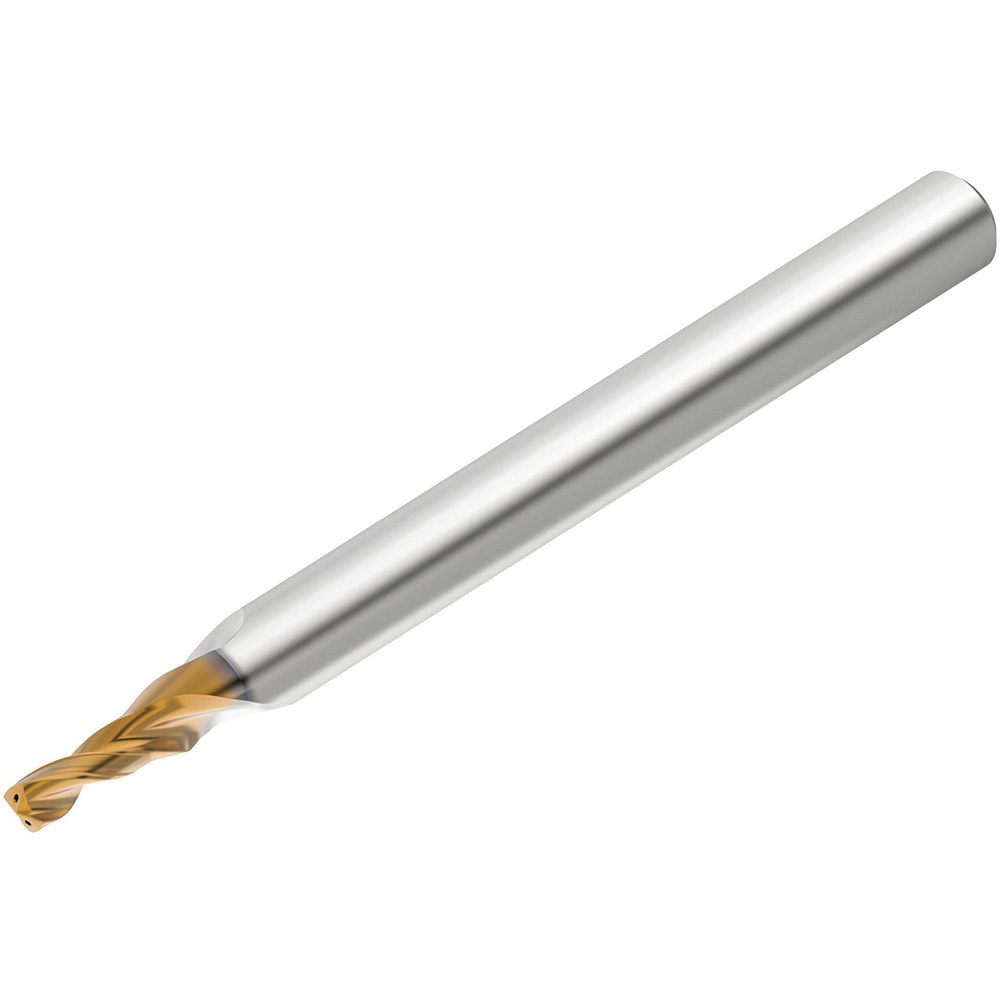

Micro Drill Bit: 1.70 mm Dia, (0.0669"), 139 deg, Solid Carbide
Item #: 67215301
Brand: Kennametal
Model #: 7070763
Product Specifications
| Drill Bit Size (mm) | 1.70 |
| Drill Bit Size (Decimal Inch) | 0.0669 |
| Tool Material | Solid Carbide |
| Flute Length (mm) | 11.60 |
| Coating/Finish | TiAlCrN; TiSiN; TiAlCrSiN |
| Coolant Through | Yes |
| Drill Point Angle | 139 |
| Cutting Direction | Right Hand |
| Maximum Drilling Depth (mm) | 70.50 |
| Number Of Flutes | 2 |
| Series | Kendrill |
| Overall Length (mm) | 50.00 |
| Flute Type | Spiral |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (mm) | 4.00 |
| Shank Length (mm) | 38.00 |
| Flute By Diameter Ratio | 40xD |
| UNSPSC Code | 23241600 |
| Drill Bit Size (mm) | 1.70 |
| Drill Bit Size (Decimal Inch) | 0.0669 |
| Tool Material | Solid Carbide |
| Flute Length (mm) | 11.60 |
| Coating/Finish | TiAlCrN; TiSiN; TiAlCrSiN |
| Coolant Through | Yes |
| Drill Point Angle | 139 |
| Cutting Direction | Right Hand |
| Maximum Drilling Depth (mm) | 70.50 |
| Number Of Flutes | 2 |
| Series | Kendrill |
| Overall Length (mm) | 50.00 |
| Flute Type | Spiral |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (mm) | 4.00 |
| Shank Length (mm) | 38.00 |
| Flute By Diameter Ratio | 40xD |
| UNSPSC Code | 23241600 |
| MSC Part # | 67215301 |
| Mfr Part # | 7070763 |
| Country of Origin Country of Origin is subject to change | Japan |
