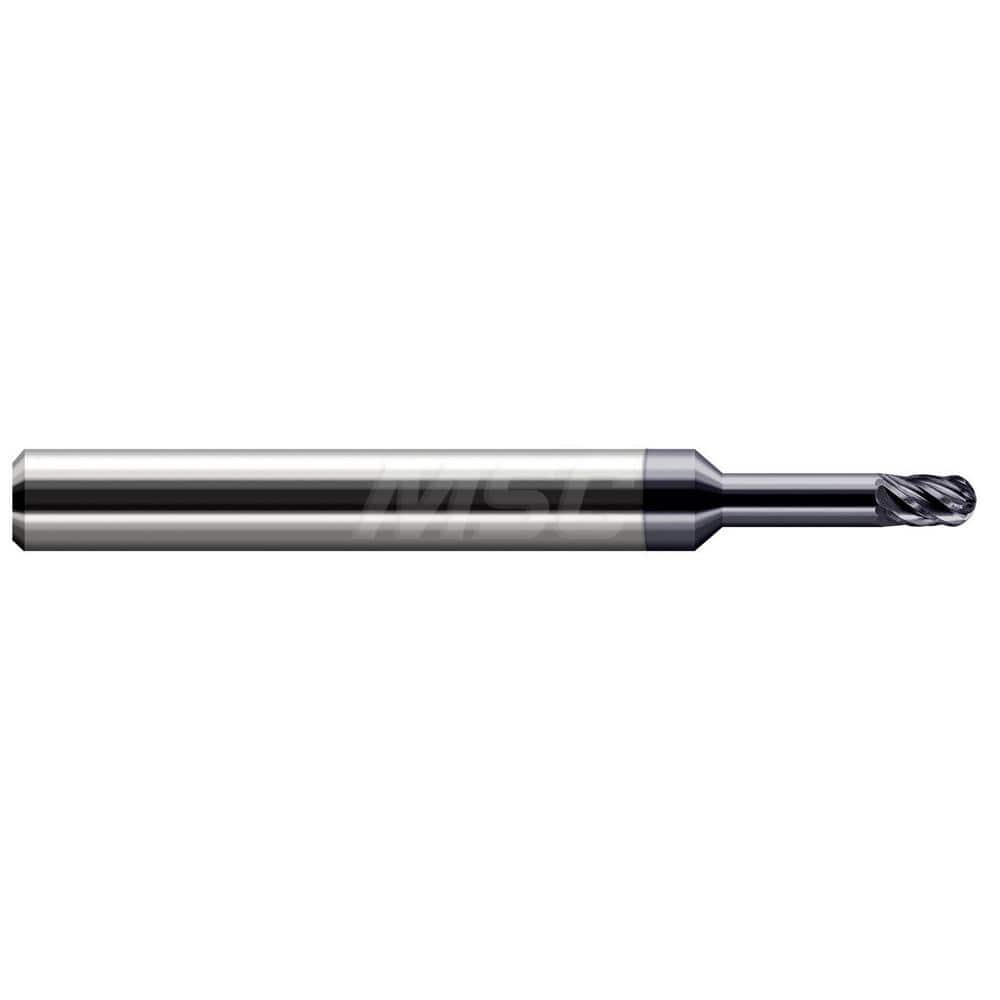

Ball End Mill: 0.031″ Dia, 0.047″ LOC, 6 Flute, Solid Carbide 2-1/2″ OAL, 1/4″ Shank Dia, 37 ° Helix, AlTiN Nano Coated, Single End
Item #: 14521512
Brand: Harvey Tool
Model #: 786231-C6
Product Specifications
| Mill Diameter (Inch) | 1/32 |
| Mill Diameter (Decimal Inch) | 0.0310 |
| Mill Diameter (mm) | 0.80 |
| Length of Cut (mm) | 1.20 |
| Length of Cut (Inch) | 3/64 |
| End Mill Material | Solid Carbide |
| Helix Angle | 37 |
| Variable Index | No |
| Length Of Cut Range (Decimal Inch) | 0.0000 to 0.0500 |
| Variable Helix | Yes |
| Shank Diameter (Inch) | 1/4 |
| Reach Length (Inch) | 5/32 |
| Reach Length (Decimal Inch) | 0.1560 |
| Overall Length (Inch) | 2-1/2 |
| Overall Length (Decimal Inch) | 2.5000 |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Centercutting | Yes |
| Single Or Double End | Single |
| Number Of Flutes | 6 |
| Coating/Finish | AlTiN Nano |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.0470 |
