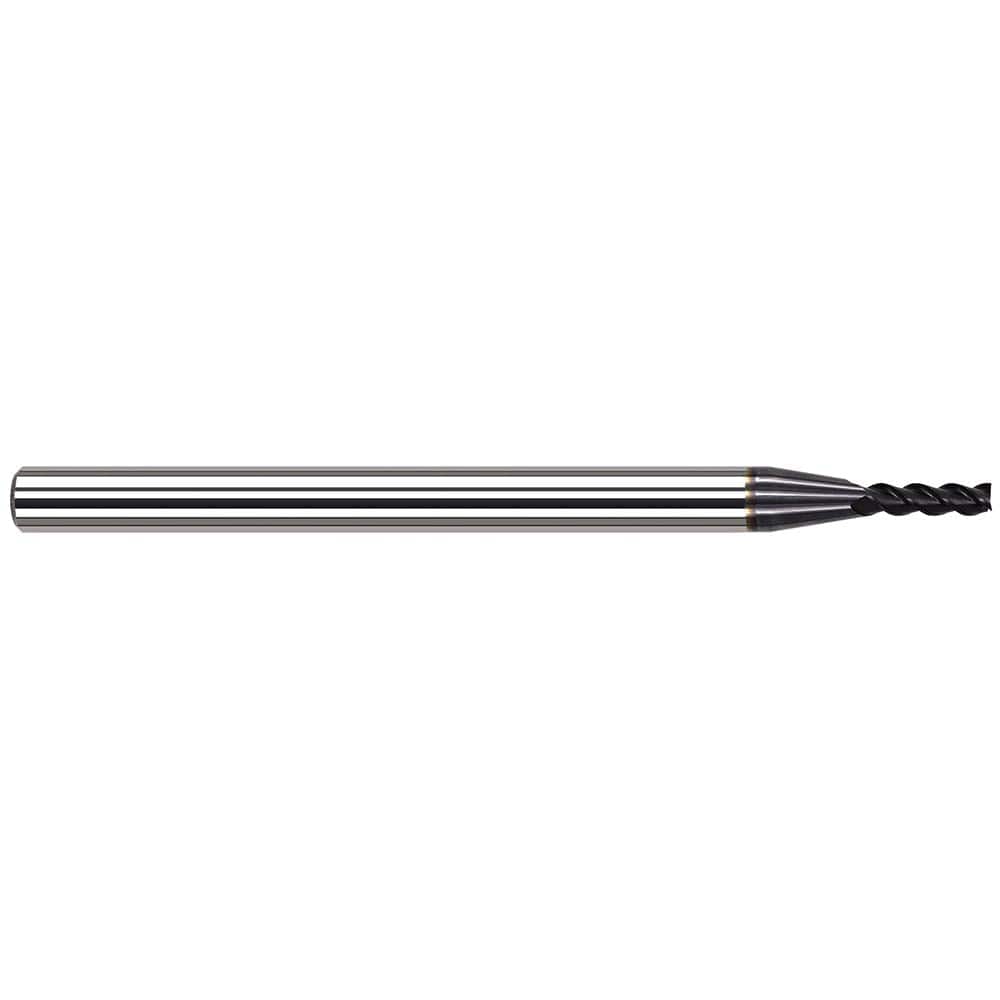

Square End Mill: 0.3937'' Dia, 1.1811'' LOC, 3 Flutes, Solid Carbide Single End, AlTiN Nano Finish, 34 ° Variable Helix, Centercutting, RH Cut, RH Flute
Item #: 14519730
Brand: Harvey Tool
Model #: 942873-C6
Product Specifications
| Mill Diameter (Decimal Inch) | 0.3937 |
| Mill Diameter (mm) | 10.00 |
| Number Of Flutes | 4 |
| Length of Cut (mm) | 30.00 |
| End Mill Material | Solid Carbide |
| End Type | Single |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Finish/Coating | AlTiN Nano |
| Shank Diameter (mm) | 10.00 |
| Helix Angle | 34 |
| Variable Helix | Yes |
| Extended Reach | No |
| Overall Length (mm) | 75.00 |
| Length Of Cut Range (Decimal Inch) | 1.0000 - 1.2500 |
| Length of Cut (Decimal Inch) | 1.1811 |
| Shank Diameter (Decimal Inch) | 0.3937 |
| Flute Direction | Right Hand |
