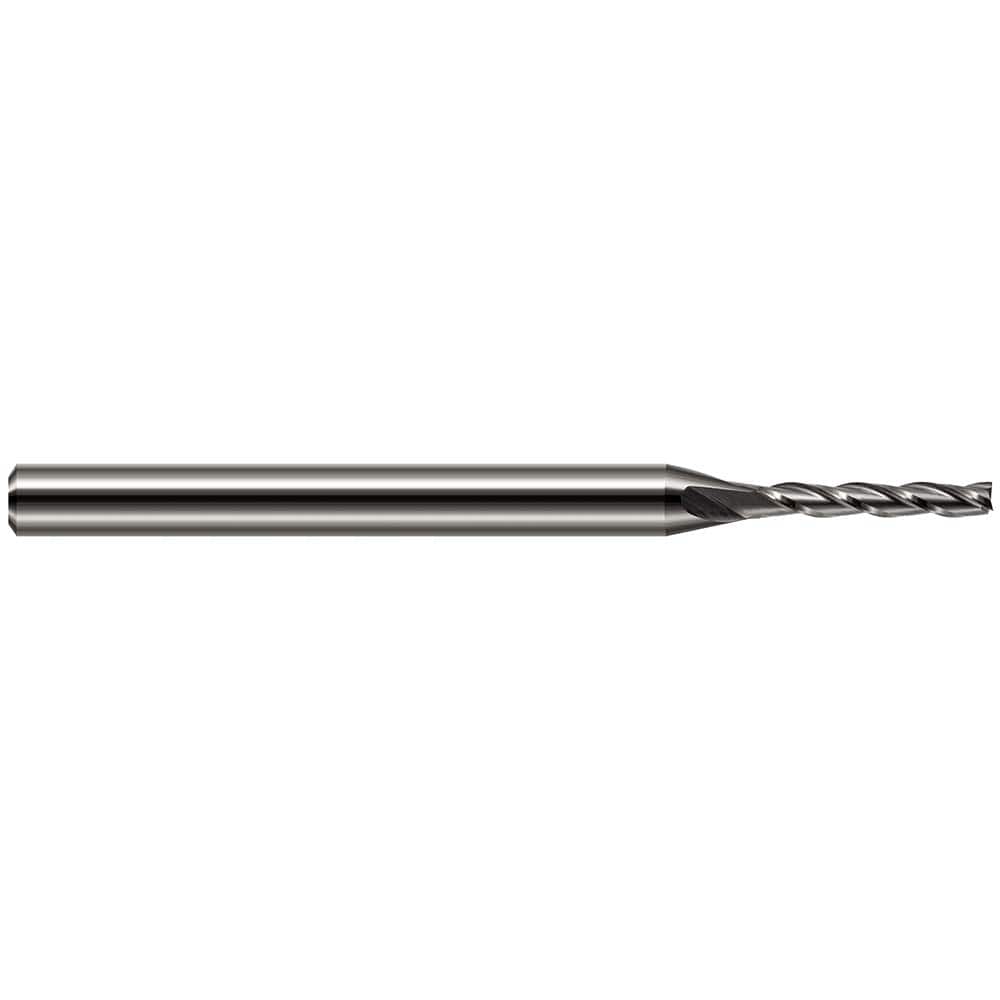

Square End Mill: 11/64'' Dia, 7/8'' LOC, 3/16'' Shank Dia, 3'' OAL, 4 Flutes, Solid Carbide Single End, Uncoated, 30 ° Helix, Centercutting, RH Cut, RH Flute
Item #: 14519516
Brand: Harvey Tool
Model #: 834211
Product Specifications
| Mill Diameter (Inch) | 11/64 |
| Mill Diameter (Decimal Inch) | 0.1719 |
| Number Of Flutes | 4 |
| Length of Cut (Inch) | 7/8 |
| End Mill Material | Solid Carbide |
| End Type | Single |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Shank Diameter (Inch) | 3/16 |
| Finish/Coating | Bright/Uncoated |
| Overall Length (Inch) | 3 |
| Helix Angle | 30 |
| Variable Helix | No |
| Extended Reach | No |
| Length Of Cut Range (Decimal Inch) | 0.8000 - 1.0000 |
| Length of Cut (Decimal Inch) | 0.8750 |
| Shank Diameter (Decimal Inch) | 0.1875 |
| Overall Length (Decimal Inch) | 3.0000 |
| Flute Direction | Right Hand |
