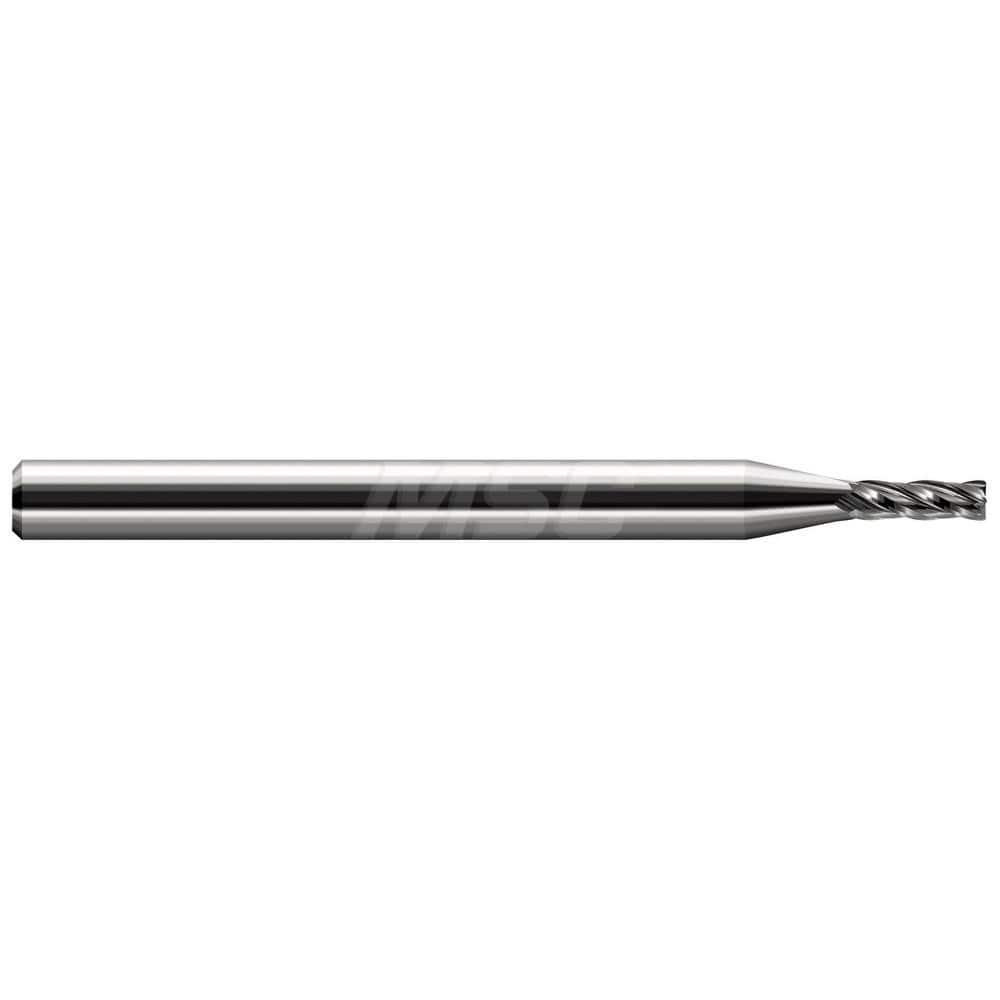

Corner Radius End Mill: 3/64″ Dia, 3/16″ LOC, 0.01″ Radius, 4 Flutes, Solid Carbide 2-1/2″ OAL, 1/8″ Shank Dia, 30 ° Helix, Bright/Uncoated, Corner Radius End, Centercutting
Item #: 14516678
Brand: Harvey Tool
Model #: 787347
Product Specifications
| Mill Diameter (Decimal Inch) | 0.0470 |
| Mill Diameter (Inch) | 3/64 |
| Mill Diameter (mm) | 1.20 |
| Length of Cut (Inch) | 3/16 |
| Corner Radius (Decimal Inch) | 0.0100 |
| Number Of Flutes | 4 |
| End Mill Material | Solid Carbide |
| End Type | Corner Radius |
| Flute Type | Helical |
| Helix Angle | 30 |
| Centercutting | Yes |
| Variable Index | No |
| Variable Helix | No |
| Shank Diameter (Inch) | 1/8 |
| Overall Length (Inch) | 2-1/2 |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Single Or Double End | Single |
| Coating/Finish | Bright/Uncoated |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.1870 |
