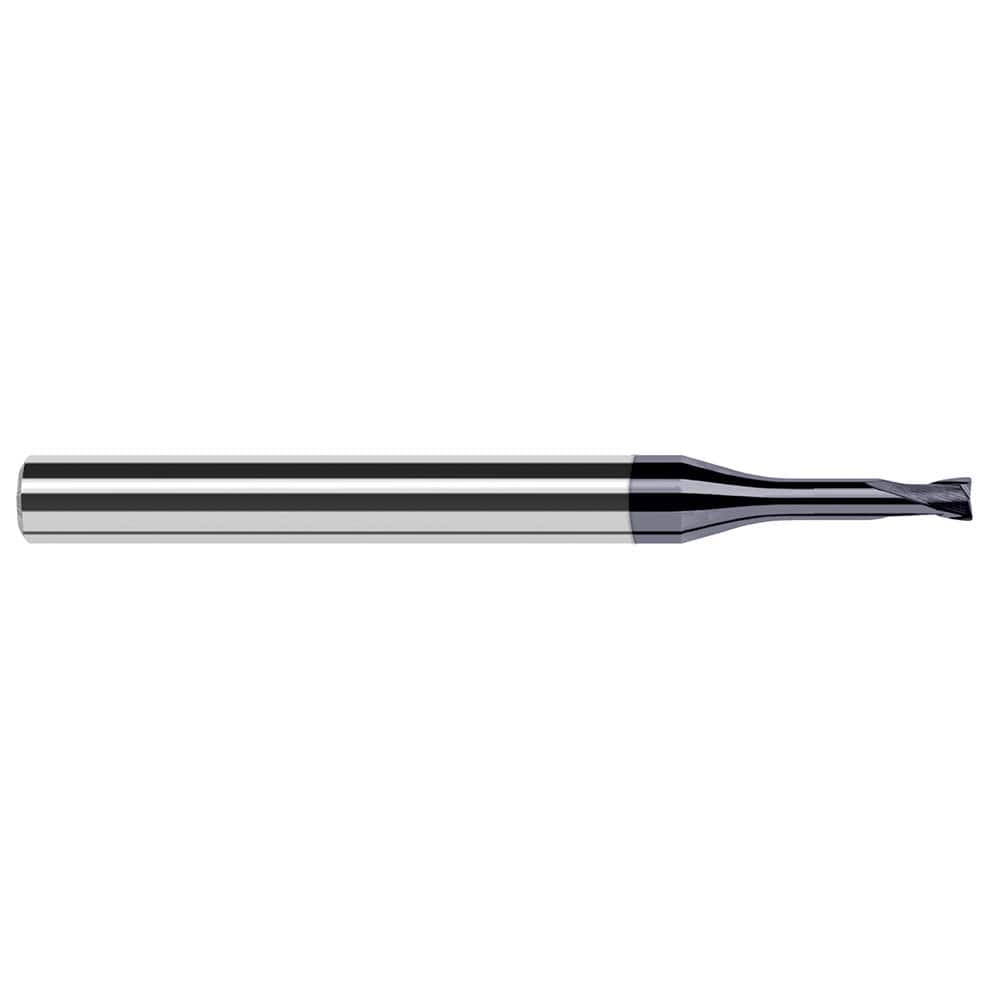

Corner Radius End Mill: 1/8″ Dia, 0.1″ LOC, 1/64″ Radius, 4 Flutes, Solid Carbide 2-1/2″ OAL, 1/4″ Shank Dia, 20 ° Helix, AlTiN Nano Coated, Corner Radius End, Centercutting
Item #: 14515407
Brand: Harvey Tool
Model #: 783608-C6
Product Specifications
| Mill Diameter (Decimal Inch) | 0.1250 |
| Mill Diameter (Inch) | 1/8 |
| Corner Radius (Decimal Inch) | 0.0150 |
| Corner Radius (Inch) | 1/64 |
| Number Of Flutes | 4 |
| End Mill Material | Solid Carbide |
| End Type | Corner Radius |
| Flute Type | Helical |
| Helix Angle | 20 |
| Centercutting | Yes |
| Variable Index | No |
| Variable Helix | No |
| Shank Diameter (Inch) | 1/4 |
| Reach Length (Decimal Inch) | 0.5000 |
| Reach Length (Inch) | 1/2 |
| Overall Length (Inch) | 2-1/2 |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Single Or Double End | Single |
| Coating/Finish | AlTiN Nano |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.1000 |
