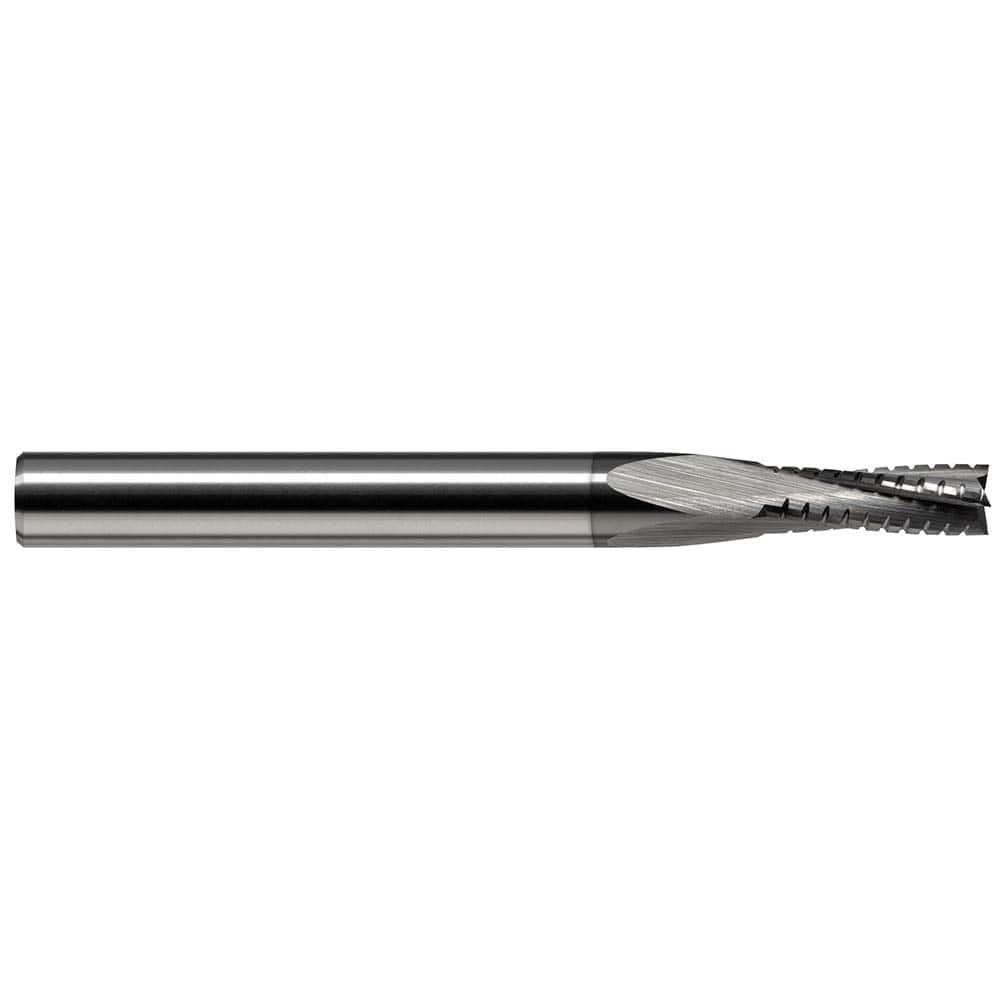

Square End Mill: 3/8'' Dia, 1-1/8'' LOC, 3/8'' Shank Dia, 3'' OAL, 8 Flutes, Solid Carbide Single End, CVD Diamond Finish, 12 ° Helix, RH Cut, RH Flute
Item #: 14513923
Brand: Harvey Tool
Model #: 791624
Product Specifications
| Mill Diameter (Inch) | 3/8 |
| Mill Diameter (Decimal Inch) | 0.3750 |
| Number Of Flutes | 8 |
| Length of Cut (Inch) | 1-1/8 |
| End Mill Material | Solid Carbide |
| End Type | Single |
| Centercutting | No |
| Cutting Direction | Right Hand |
| Shank Diameter (Inch) | 3/8 |
| Finish/Coating | CVD Diamond |
| Overall Length (Inch) | 3 |
| Helix Angle | 12 |
| Chipbreaker | Yes |
| Variable Helix | No |
| Extended Reach | No |
| Length Of Cut Range (Decimal Inch) | 1.0000 - 1.2500 |
| Length of Cut (Decimal Inch) | 1.1250 |
| Shank Diameter (Decimal Inch) | 0.3750 |
| Overall Length (Decimal Inch) | 3.0000 |
| Flute Direction | Right Hand |
