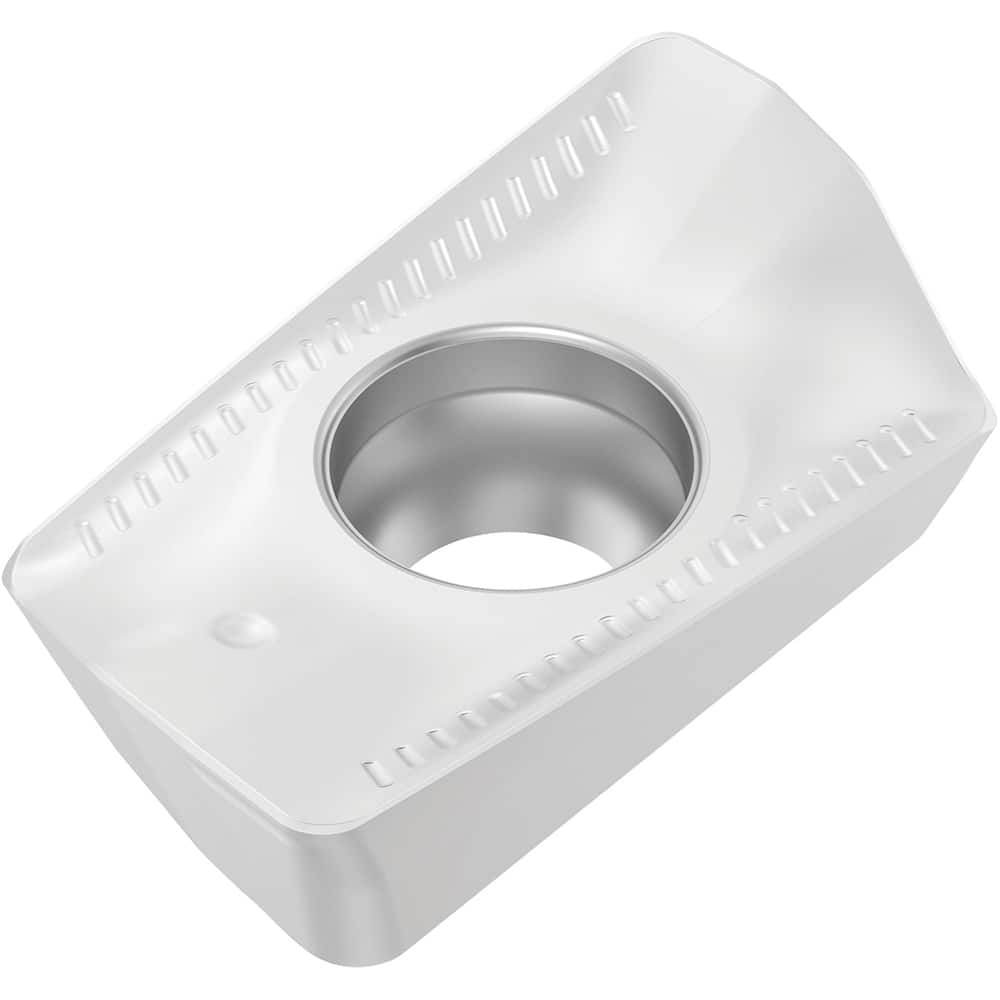

XOMX160504TR-ME11 Carbide Milling Insert TiCN/Al2O3 Finish, 0.606″ Long x 0.234″ Thick x 0.402″ Wide
Item #: 14420376
Brand: Seco
Model #: 10001030
Product Specifications
| Insert Style | XOMX |
| Insert Size | 160504 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | MP2501 |
| Inscribed Circle (Decimal Inch) | 0.4020 |
| Thickness Range (Decimal Inch) | 0.2200 to 0.2350 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Inscribed Circle Range (Decimal Inch) | 0.4000 to 0.5000 |
| Length Range (Decimal Inch) | 0.6000 to 0.6500 |
| Insert Hand | Right Hand |
| Relief Angle | 15.20 |
| Hole Diameter (Decimal Inch) | 0.1770 |
| Maximum Depth of Cut (Decimal Inch) | 0.6060 |
| Rake | Positive |
| Ansi Code | XOMX160504TR-ME11 |
| Iso Code | XOMX160504TR-ME11 |
| Rake Angle | 22.70 |
| Cutting Edge Style | T-Land; Honed |
| Manufacturers Catalog Number | XOMX160504TR-ME11 |
| Cutter Series Compatibility | R217; R220.69 |
| Chip Breaker | ME11 |
| Shape | Parallelogram |
| Coating Classification | CVD |
| Coating/Finish | TiCN; Al2O3 |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.4020 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2340 |
| Length (Decimal Inch - 4 Decimals) | 0.6060 |
