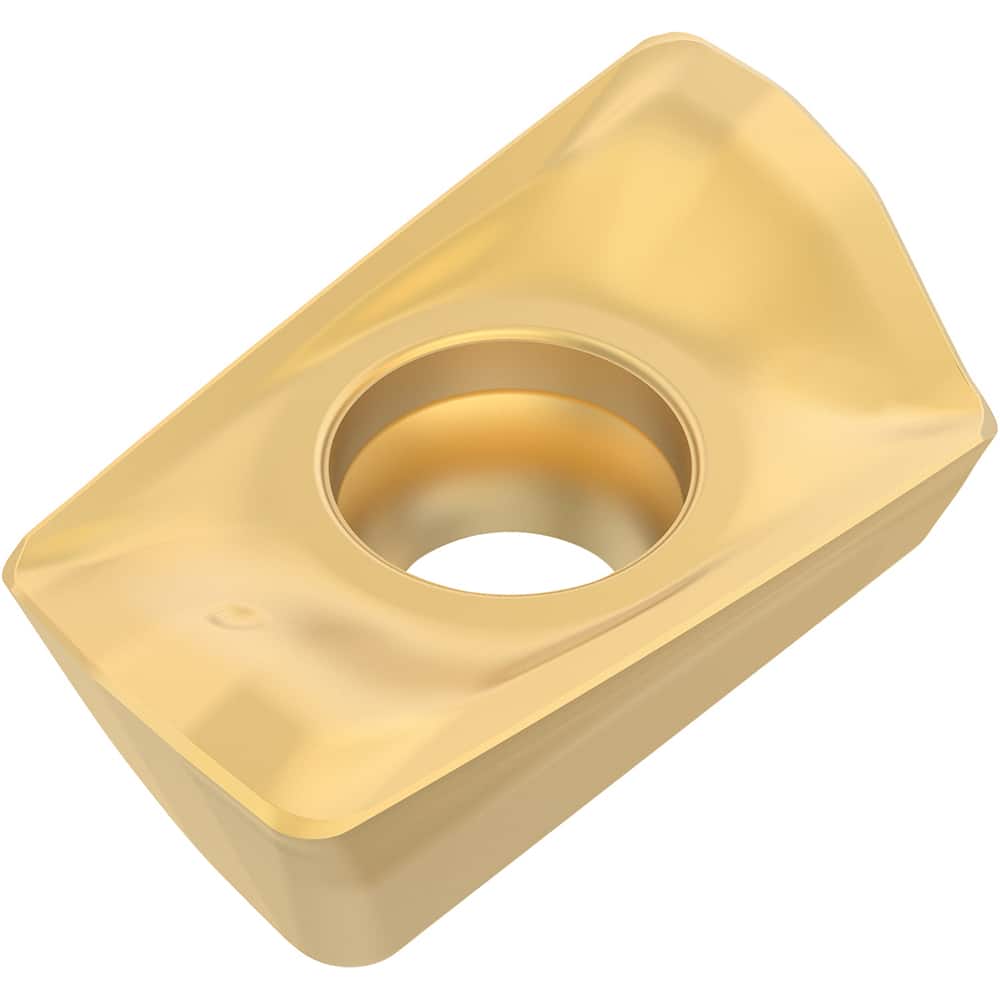

XOMX160508TR-MD14 Carbide Milling Insert TiAlN Finish, 0.606″ Long x 0.237″ Thick x 0.402″ Wide
Item #: 14417141
Brand: Seco
Model #: 10001023
Product Specifications
| Insert Style | XOMX |
| Insert Size Code | 16 |
| Insert Size | 160508 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | MP3000 |
| Inscribed Circle (Decimal Inch) | 0.4020 |
| Thickness Range (Decimal Inch) | 0.2350 to 0.2500 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Inscribed Circle Range (Decimal Inch) | 0.4000 to 0.5000 |
| Length Range (Decimal Inch) | 0.6000 to 0.6500 |
| Insert Hand | Right Hand |
| Relief Angle | 15.20 |
| Coating Process | PVD |
| Hole Diameter (Decimal Inch) | 0.1770 |
| Maximum Depth of Cut (Decimal Inch) | 0.6060 |
| Number Of Cutting Edges | 2 |
| Rake | Positive |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; H; M |
| Iso Code | XOMX160508TR-MD14 |
| Standards | ISO; ANSI |
| Rake Angle | 7.00 |
| Cutting Edge Style | T-Land; Honed |
| Manufacturers Catalog Number | XOMX160508TR-MD14 |
| Cutter Series Compatibility | R217; R220.69 |
| Chip Breaker | MD14 |
| Shape | Parallelogram |
| Coating Classification | PVD |
| Coating/Finish | Coated |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.4020 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2370 |
| Length (Decimal Inch - 4 Decimals) | 0.6060 |
