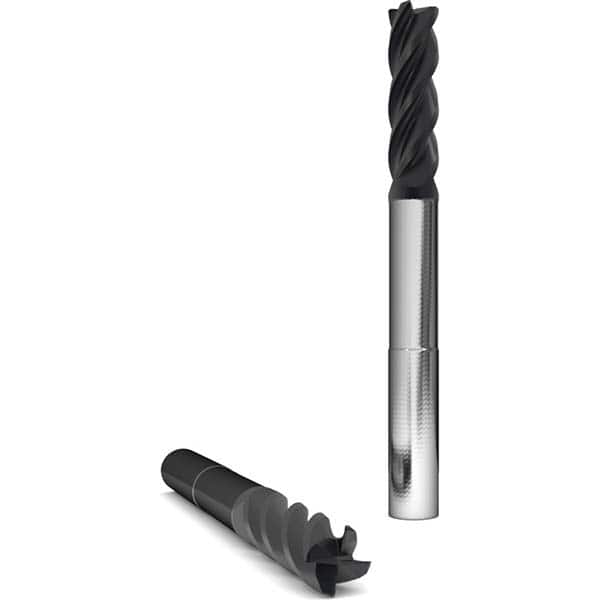

Corner Radius End Mill: 5/8″ Dia, 3/4″ LOC, 0.03″ Radius, 4 Flutes, Solid Carbide 6″ OAL, 3/4″ Shank Dia, 38 ° Helix, AlCr Coated, Corner Radius End, Centercutting, Series 1035
Item #: 14328520
Brand: GWS
Model #: 310955
Product Specifications
| Mill Diameter (Decimal Inch) | 0.6250 |
| Mill Diameter (Inch) | 5/8 |
| Mill Diameter (mm) | 15.88 |
| Length of Cut (Inch) | 3/4 |
| Corner Radius (Decimal Inch) | 0.0300 |
| Length of Cut (mm) | 19.05 |
| Number Of Flutes | 4 |
| End Mill Material | Solid Carbide |
| Extended Reach | No |
| End Type | Corner Radius |
| Length Type | Standard |
| Flute Type | Straight |
| Helix Angle | 38 |
| Shank Type | Standard |
| Centercutting | Yes |
| Shank Diameter (Inch) | 0.75 |
| Overall Length (Inch) | 6 |
| Overall Length (mm) | 152.40 |
| Overall Length (Decimal Inch) | 6.0000 |
| Maximum Helix Angle | 38.00 |
| Shank Diameter Tolerance | h6 |
| Primary Workpiece Material | Stainless Steel; Steel |
| Primary Workpiece Material Code | P; M |
| Secondary Workpiece Material | Cast Iron |
| Secondary Workpiece Material Code | S; K |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Material Grade | Micrograin |
| Series | 1035 |
| Coating Classification | Uncoated |
| Single Or Double End | Single |
| Coating/Finish | AlCr |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.7500 |
