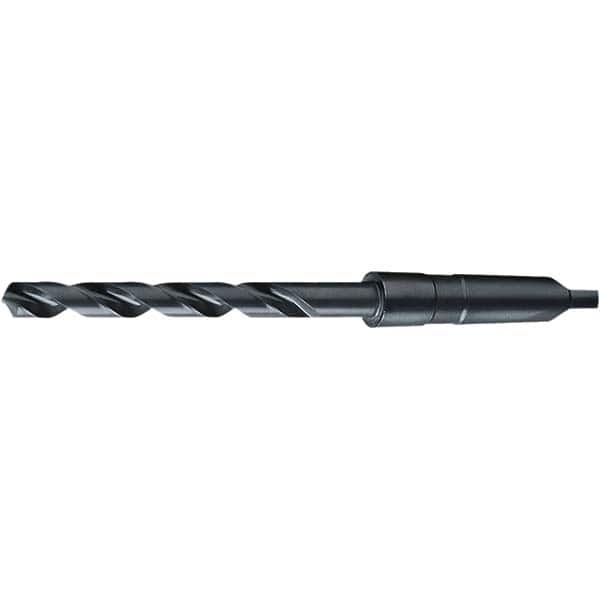

Taper Shank Drill Bit: 0.6563″ Dia, 2MT, 118 °, High Speed Steel Oxide Finish, 9″ OAL, Radial Point, Spiral Flute
Item #: 14287403
Brand: Cle-Line
Model #: C24739
Product Specifications
| Drill Bit Size (Inch) | 21/32 |
| Tool Material | High Speed Steel |
| Shank Taper Designation | 2MT |
| Overall Length (Inch) | 9 |
| Coating/Finish | Oxide |
| Flute Type | Spiral |
| Drill Point Angle | 118 |
| Coolant Through | No |
| Point Type | Radial |
| Flute Length (Inch) | 5-1/8 |
| Drill Bit Size (Decimal Inch) | 0.6563 |
| Flute Length (Decimal Inch) | 5.1250 |
| Tool Performance | General Purpose |
| Spiral Type | Regular |
| Maximum Drilling Depth (Decimal Inch) | 1.6405 |
| Cutting Direction | Right Hand |
| Overall Length (Decimal Inch) | 9.0000 |
| Series | 1894 |
| Standards | ASME B94.11M |
| Drill Length Type | Aircraft/Extension |
| Flute Length x Diamter Ratio | 3xD |
| Drill Bit Diameter Tolerance | +0.0000 to -0.0012 in |
| PSC Code | 5133 |
